TC4MHR 系列
概述
模型
下载
相关的
资源
New models
Magnification
0.073 - 4 x
传统镜头

核心优势

  • 具有宽像圈,适用于尺寸达 4/3”的传感器
  • 超高分辨率和低畸变
  • 简洁而坚固的设计,适用于工业环境
  • 带有认证光学参数的详细测试报告
  • 兼容 C、F、M42X1 (-E) 接口
  • 轻松相位调节
发现更多
主要光学规格 物方视场 先进的光学规格 机械规格
产品型号 放大倍率 像圈直径 最大传感器尺寸 1" 1.1″ 4/3″ 工作距离 工作F值 典型(最大)远心度 典型畸变(最大) 景深 接口 长度 前部直径
14.19 x 7.51 14.16 x 10.37 18.93 x 10.61
(x) (mm) (mm × mm) (mm × mm) (mm × mm) (mm) (deg) (%) (mm) (mm) (mm)
1 2 3 4 5 6 9
TC4MHRP004-C 4.000 22.0 4/3″ 3.55 x 1.88 3.54 x 2.59 4.73 x 2.65 56.0 18 <0.08 (0.10) <0.08 (0.10) 0.1 C 155.2 28
购买
TC4MHRP004-F 4.000 22.0 4/3″ 3.55 x 1.88 3.54 x 2.59 4.73 x 2.65 56.0 18 <0.08 (0.10) <0.08 (0.10) 0.1 F 126.2 28
购买
TC4MHRP004-J 4.000 22.0 4/3″ 3.55 x 1.88 3.54 x 2.59 4.73 x 2.65 56.0 18 <0.08 (0.10) <0.08 (0.10) 0.1 M42x1 FD 12 160.7 28
购买
TC4MHRP007-C 2.667 22.0 4/3″ 5.32 x 2.82 5.31 x 3.89 7.10 x 3.98 60.1 16 <0.08 (0.10) <0.08 (0.10) 0.1 C 134.2 28
购买
TC4MHRP007-F 2.667 22.0 4/3″ 5.32 x 2.82 5.31 x 3.89 7.10 x 3.98 60.1 16 <0.08 (0.10) <0.08 (0.10) 0.1 F 105.2 28
购买
TC4MHRP007-J 2.667 22.0 4/3″ 5.32 x 2.82 5.31 x 3.89 7.10 x 3.98 60.1 16 <0.08 (0.10) <0.08 (0.10) 0.1 M42x1 FD 12 139.7 28
购买
TC4MHRP009-C 2.000 22.0 4/3″ 7.10 x 3.76 7.08 x 5.19 9.47 x 5.31 62.2 16 <0.08 (0.10) <0.08 (0.10) 0.2 C 111.6 28
购买
TC4MHRP009-F 2.000 22.0 4/3″ 7.10 x 3.76 7.08 x 5.19 9.47 x 5.31 62.2 16 <0.08 (0.10) <0.08 (0.10) 0.2 F 82.6 28
购买
TC4MHRP009-J 2.000 22.0 4/3″ 7.10 x 3.76 7.08 x 5.19 9.47 x 5.31 62.2 16 <0.08 (0.10) <0.08 (0.10) 0.2 M42x1 FD 12 117.1 28
购买
TC4MHRP016-C 1.054 22.0 4/3″ 13.46 x 7.13 13.43 x 9.84 17.96 x 10.07 43.1 16 <0.07 (0.10) <0.05 (0.10) 0.7 C 169.2 37.7
购买
TC4MHRP016-F 1.054 22.0 4/3″ 13.46 x 7.13 13.43 x 9.84 17.96 x 10.07 43.1 16 <0.07 (0.10) <0.05 (0.10) 0.7 F 140.3 37.7
购买
TC4MHRP016-J 1.054 22.0 4/3″ 13.46 x 7.13 13.43 x 9.84 17.96 x 10.07 43.1 16 <0.07 (0.10) <0.05 (0.10) 0.7 M42x1 FD 12 174.8 37.7
购买
TC4MHRP024-C 0.699 22.0 4/3″ 20.30 x 10.74 20.26 x 14.84 27.08 x 15.18 67.2 11 <0.07 (0.10) <0.05 (0.10) 1.2 C 194.3 44
购买
TC4MHRP024-F 0.699 22.0 4/3″ 20.30 x 10.74 20.26 x 14.84 27.08 x 15.18 67.2 11 <0.07 (0.10) <0.05 (0.10) 1.2 F 165.0 44
购买
TC4MHRP024-J 0.699 22.0 4/3″ 20.30 x 10.74 20.26 x 14.84 27.08 x 15.18 67.2 11 <0.07 (0.10) <0.05 (0.10) 1.2 M42x1 FD 12 199.9 44
购买
TC4MHRP036-C 0.486 22.0 4/3″ 29.20 x 15.45 29.14 x 21.34 38.95 x 21.83 102.6 11 <0.04 (0.10) <0.06 (0.10) 2.4 C 221.7 61
购买
TC4MHRP036-F 0.486 22.0 4/3″ 29.20 x 15.45 29.14 x 21.34 38.95 x 21.83 102.6 11 <0.04 (0.10) <0.06 (0.10) 2.4 F 192.6 61
购买
TC4MHRP036-J 0.486 22.0 4/3″ 29.20 x 15.45 29.14 x 21.34 38.95 x 21.83 102.6 11 <0.04 (0.10) <0.06 (0.10) 2.4 M42x1 FD 12 227.2 61
购买
TC4MHRP048-C 0.366 22.0 4/3″ 38.77 x 20.52 38.69 x 28.33 51.72 x 28.99 132.9 8 <0.08 (0.10) <0.05 (0.10) 3.1 C 244.2 75
购买
TC4MHRP048-F 0.366 22.0 4/3″ 38.77 x 20.52 38.69 x 28.33 51.72 x 28.99 132.9 8 <0.08 (0.10) <0.05 (0.10) 3.1 F 215.2 75
购买
TC4MHRP048-J 0.366 22.0 4/3″ 38.77 x 20.52 38.69 x 28.33 51.72 x 28.99 132.9 8 <0.08 (0.10) <0.05 (0.10) 3.1 M42x1 FD 12 249.7 75
购买
TC4MHRP056-C 0.313 22.0 4/3″ 45.34 x 23.99 45.24 x 33.13 60.48 x 33.90 157.8 8 <0.05 (0.10) <0.07 (0.10) 4.2 C 267.6 80
购买
TC4MHRP056-F 0.313 22.0 4/3″ 45.34 x 23.99 45.24 x 33.13 60.48 x 33.90 157.8 8 <0.05 (0.10) <0.07 (0.10) 4.2 F 238.6 80
购买
TC4MHRP056-J 0.313 22.0 4/3″ 45.34 x 23.99 45.24 x 33.13 60.48 x 33.90 157.8 8 <0.05 (0.10) <0.07 (0.10) 4.2 M42x1 FD 12 273.1 80
购买
TC4MHRP064-C 0.274 22.0 4/3″ 51.79 x 27.41 51.68 x 37.85 69.09 x 38.72 181.9 8 <0.04 (0.10) <0.08 (0.10) 5.5 C 288.7 100
购买
TC4MHRP064-F 0.274 22.0 4/3″ 51.79 x 27.41 51.68 x 37.85 69.09 x 38.72 181.9 8 <0.04 (0.10) <0.08 (0.10) 5.5 F 259.7 100
购买
TC4MHRP064-J 0.274 22.0 4/3″ 51.79 x 27.41 51.68 x 37.85 69.09 x 38.72 181.9 8 <0.04 (0.10) <0.08 (0.10) 5.5 M42x1 FD 12 294.2 100
购买
TC4MHRP080-C 0.220 22.0 4/3″ 64.50 x 34.14 64.36 x 47.14 86.05 x 48.23 226.8 8 <0.04 (0.10) <0.08 (0.10) 8.6 C 334.5 116
购买
TC4MHRP080-F 0.220 22.0 4/3″ 64.50 x 34.14 64.36 x 47.14 86.05 x 48.23 226.8 8 <0.04 (0.10) <0.08 (0.10) 8.6 F 305.5 116
购买
TC4MHRP080-J 0.220 22.0 4/3″ 64.50 x 34.14 64.36 x 47.14 86.05 x 48.23 226.8 8 <0.04 (0.10) <0.08 (0.10) 8.6 M42x1 FD 12 340.0 116
购买
TC4MHRP096-C 0.185 22.0 4/3″ 76.70 x 40.59 76.54 x 56.05 102.32 x 57.35 278.6 8 <0.05 (0.10) <0.04 (0.10) 12.1 C 374.7 143
购买
TC4MHRP096-F 0.185 22.0 4/3″ 76.70 x 40.59 76.54 x 56.05 102.32 x 57.35 278.6 8 <0.05 (0.10) <0.04 (0.10) 12.1 F 345.7 143
购买
TC4MHRP096-J 0.185 22.0 4/3″ 76.70 x 40.59 76.54 x 56.05 102.32 x 57.35 278.6 8 <0.05 (0.10) <0.04 (0.10) 12.1 M42x1 FD 12 380.2 143
购买
TC4MHRP120-C 0.143 22.0 4/3″ 99.23 x 52.52 99.02 x 72.52 132.38 x 74.20 334.6 8 <0.05 (0.10) <0.05 (0.10) 20.2 C 461.1 180
购买
TC4MHRP120-F 0.143 22.0 4/3″ 99.23 x 52.52 99.02 x 72.52 132.38 x 74.20 334.6 8 <0.05 (0.10) <0.05 (0.10) 20.2 F 432.1 180
购买
TC4MHRP120-J 0.143 22.0 4/3″ 99.23 x 52.52 99.02 x 72.52 132.38 x 74.20 334.6 8 <0.05 (0.10) <0.05 (0.10) 20.2 M42x1 FD 12 466.6 180
购买
TC4MHRP144-C 0.122 22.0 4/3″ 116.31 x 61.56 116.07 x 85.00 155.16 x 86.97 396.0 8 <0.05 (0.10) <0.08 (0.10) 27.8 C 520.5 200
购买
TC4MHRP144-F 0.122 22.0 4/3″ 116.31 x 61.56 116.07 x 85.00 155.16 x 86.97 396.0 8 <0.05 (0.10) <0.08 (0.10) 27.8 F 491.6 200
购买
TC4MHRP144-J 0.122 22.0 4/3″ 116.31 x 61.56 116.07 x 85.00 155.16 x 86.97 396.0 8 <0.05 (0.10) <0.08 (0.10) 27.8 M42x1 FD 12 526.1 200
购买
TC4MHRP192-C 0.091 22.0 4/3″ 155.93 x 82.53 155.60 x 113.96 208.02 x 116.59 527.6 8 <0.04 (0.10) <0.08 (0.10) 50.0 C 661.0 260
购买
TC4MHRP192-F 0.091 22.0 4/3″ 155.93 x 82.53 155.60 x 113.96 208.02 x 116.59 527.6 8 <0.04 (0.10) <0.08 (0.10) 50.0 F 632.0 260
购买
TC4MHRP192-J 0.091 22.0 4/3″ 155.93 x 82.53 155.60 x 113.96 208.02 x 116.59 527.6 8 <0.04 (0.10) <0.08 (0.10) 50.0 M42x1 FD 12 666.5 260
购买
TC4MHRP240-C 0.073 21.8 4/3″ 194.38 x 102.88 193.97 x 142.05 259.32 x 145.34 492.8 8 <0.04 (0.10) <0.04 (0.10) 77.7 C 813.2 322
购买
TC4MHRP240-F 0.073 21.8 4/3″ 194.38 x 102.88 193.97 x 142.05 259.32 x 145.34 492.8 8 <0.04 (0.10) <0.04 (0.10) 77.7 F 784.2 322
购买
TC4MHRP240-J 0.073 21.8 4/3″ 194.38 x 102.88 193.97 x 142.05 259.32 x 145.34 492.8 8 <0.04 (0.10) <0.04 (0.10) 77.7 M42x1 FD 12 818.7 322
购买
TC4MHRP308-C 0.059 22.0 4/3″ 240.51 x 127.29 240.00 x 175.76 320.85 x 179.83 500.0 8 <0.09 (0.10) <0.07 (0.10) 118.9 C 970.4 417
购买
TC4MHRP308-F 0.059 22.0 4/3″ 240.51 x 127.29 240.00 x 175.76 320.85 x 179.83 500.0 8 <0.09 (0.10) <0.07 (0.10) 118.9 F 941.4 417
购买
TC4MHRP308-J 0.059 22.0 4/3″ 240.51 x 127.29 240.00 x 175.76 320.85 x 179.83 500.0 8 <0.09 (0.10) <0.07 (0.10) 118.9 M42x1 FD 12 975.9 417
购买
TC4M004-C 4.000 22.0 4/3″ 3.55 x 1.88 3.54 x 2.59 4.73 x 2.65 56.0 22 <0.08 (0.10) <0.08 (0.10) 0.1 C 206.6 28
购买
TC4M004-F 4.000 22.0 4/3″ 3.55 x 1.88 3.54 x 2.59 4.73 x 2.65 56.0 22 <0.08 (0.10) <0.08 (0.10) 0.1 F 177.7 28
购买
TC4M007-C 2.667 22.0 4/3″ 5.32 x 2.82 5.31 x 3.89 7.10 x 3.98 60.1 22 <0.08 (0.10) <0.06 (0.10) 0.2 C 183.6 28
购买
TC4M007-F 2.667 22.0 4/3″ 5.32 x 2.82 5.31 x 3.89 7.10 x 3.98 60.1 22 <0.08 (0.10) <0.06 (0.10) 0.2 F 154.7 28
购买
TC4M009-C 2.000 22.0 4/3″ 7.10 x 3.76 7.08 x 5.19 9.47 x 5.31 62.2 22 <0.08 (0.10) <0.05 (0.10) 0.3 C 170 28
购买
TC4M009-F 2.000 22.0 4/3″ 7.10 x 3.76 7.08 x 5.19 9.47 x 5.31 62.2 22 <0.08 (0.10) <0.05 (0.10) 0.3 F 141.1 28
购买
TC4MHR016-C 1.055 21.2 4/3″ 13.45 x 7.12 13.42 x 9.83 17.94 x 10.06 43.8 16 <0.08 (0.10) <0.04 (0.10) 0.7 C 169.6 37.7
购买
TC4MHR016-F 1.055 21.2 4/3″ 13.45 x 7.12 13.42 x 9.83 17.94 x 10.06 43.8 16 <0.08 (0.10) <0.04 (0.10) 0.7 F 140.6 37.7
购买
TC4MHR016-E 1.055 21.2 4/3″ 13.45 x 7.12 13.42 x 9.83 17.94 x 10.06 43.8 16 <0.08 (0.10) <0.04 (0.10) 0.7 M42x1 FD 16 171.1 37.7
购买
TC4MHR024-C 0.700 21.6 4/3″ 20.27 x 10.73 20.23 x 14.81 27.04 x 15.16 67.2 16 <0.08 (0.10) <0.04 (0.10) 1.7 C 194.8 44
购买
TC4MHR024-F 0.700 21.6 4/3″ 20.27 x 10.73 20.23 x 14.81 27.04 x 15.16 67.2 16 <0.08 (0.10) <0.04 (0.10) 1.7 F 165.8 44
购买
TC4MHR024-E 0.700 21.6 4/3″ 20.27 x 10.73 20.23 x 14.81 27.04 x 15.16 67.2 16 <0.08 (0.10) <0.04 (0.10) 1.7 M42x1 FD 16 196.3 44
购买
TC4MHR036-C 0.486 21.4 4/3″ 29.20 x 15.45 29.14 x 21.34 38.95 x 21.83 102.6 16 <0.05 (0.10) <0.08 (0.10) 3.5 C 222 61
购买
TC4MHR036-F 0.486 21.4 4/3″ 29.20 x 15.45 29.14 x 21.34 38.95 x 21.83 102.6 16 <0.05 (0.10) <0.08 (0.10) 3.5 F 193 61
购买
TC4MHR036-E 0.486 21.4 4/3″ 29.20 x 15.45 29.14 x 21.34 38.95 x 21.83 102.6 16 <0.05 (0.10) <0.08 (0.10) 3.5 M42x1 FD 16 223.6 61
购买
TC4MHR048-C 0.369 21.7 4/3″ 38.46 x 20.35 38.37 x 28.10 51.30 x 28.75 133.4 16 <0.08 (0.10) <0.08 (0.10) 6.1 C 257.1 75
购买
TC4MHR048-F 0.369 21.7 4/3″ 38.46 x 20.35 38.37 x 28.10 51.30 x 28.75 133.4 16 <0.08 (0.10) <0.08 (0.10) 6.1 F 228.1 75
购买
TC4MHR048-E 0.369 21.7 4/3″ 38.46 x 20.35 38.37 x 28.10 51.30 x 28.75 133.4 16 <0.08 (0.10) <0.08 (0.10) 6.1 M42x1 FD 16 258.6 75
购买
TC4MHR056-C 0.314 21.6 4/3″ 45.19 x 23.92 45.10 x 33.03 60.29 x 33.79 157.8 16 <0.05 (0.10) <0.04 (0.10) 8.4 C 280.7 80
购买
TC4MHR056-F 0.314 21.6 4/3″ 45.19 x 23.92 45.10 x 33.03 60.29 x 33.79 157.8 16 <0.05 (0.10) <0.04 (0.10) 8.4 F 251.7 80
购买
TC4MHR056-E 0.314 21.6 4/3″ 45.19 x 23.92 45.10 x 33.03 60.29 x 33.79 157.8 16 <0.05 (0.10) <0.04 (0.10) 8.4 M42x1 FD 16 282.2 80
购买
TC4MHR064-C 0.275 21.6 4/3″ 51.60 x 27.31 51.49 x 37.71 68.84 x 38.58 181.9 16 <0.05 (0.10) <0.04 (0.10) 10.9 C 301.8 100
购买
TC4MHR064-F 0.275 21.6 4/3″ 51.60 x 27.31 51.49 x 37.71 68.84 x 38.58 181.9 16 <0.05 (0.10) <0.04 (0.10) 10.9 F 272.8 100
购买
TC4MHR064-E 0.275 21.6 4/3″ 51.60 x 27.31 51.49 x 37.71 68.84 x 38.58 181.9 16 <0.05 (0.10) <0.04 (0.10) 10.9 M42x1 FD 16 303.4 100
购买
TC4MHR080-C 0.221 21.7 4/3″ 64.21 x 33.98 64.07 x 46.92 85.66 x 48.01 226.8 16 <0.05 (0.10) <0.04 (0.10) 17.0 C 347.6 116
购买
TC4MHR080-F 0.221 21.7 4/3″ 64.21 x 33.98 64.07 x 46.92 85.66 x 48.01 226.8 16 <0.05 (0.10) <0.04 (0.10) 17.0 F 318.6 116
购买
TC4MHR080-E 0.221 21.7 4/3″ 64.21 x 33.98 64.07 x 46.92 85.66 x 48.01 226.8 16 <0.05 (0.10) <0.04 (0.10) 17.0 M42x1 FD 16 349.1 116
购买
TC4MHR096-C 0.186 21.6 4/3″ 76.29 x 40.38 76.13 x 55.75 101.77 x 57.04 278.6 16 <0.05 (0.10) <0.04 (0.10) 23.9 C 392.8 143
购买
TC4MHR096-F 0.186 21.6 4/3″ 76.29 x 40.38 76.13 x 55.75 101.77 x 57.04 278.6 16 <0.05 (0.10) <0.04 (0.10) 23.9 F 363.8 143
购买
TC4MHR096-E 0.186 21.6 4/3″ 76.29 x 40.38 76.13 x 55.75 101.77 x 57.04 278.6 16 <0.05 (0.10) <0.04 (0.10) 23.9 M42x1 FD 16 394.3 143
购买
TC4MHR120-C 0.143 21.2 4/3″ 99.23 x 52.52 99.02 x 72.52 132.38 x 74.20 334.6 16 <0.05 (0.10) <0.04 (0.10) 40.5 C 475.2 180
购买
TC4MHR120-F 0.143 21.2 4/3″ 99.23 x 52.52 99.02 x 72.52 132.38 x 74.20 334.6 16 <0.05 (0.10) <0.04 (0.10) 40.5 F 446.2 180
购买
TC4MHR120-E 0.143 21.2 4/3″ 99.23 x 52.52 99.02 x 72.52 132.38 x 74.20 334.6 16 <0.05 (0.10) <0.04 (0.10) 40.5 M42x1 FD 16 476.7 180
购买
TC4MHR144-C 0.122 21.6 4/3″ 116.31 x 61.56 116.07 x 85.00 155.16 x 86.97 396.0 16 <0.05 (0.10) <0.04 (0.10) 55.6 C 537.7 200
购买
TC4MHR144-F 0.122 21.6 4/3″ 116.31 x 61.56 116.07 x 85.00 155.16 x 86.97 396.0 16 <0.05 (0.10) <0.04 (0.10) 55.6 F 508.7 200
购买
TC4MHR144-E 0.122 21.6 4/3″ 116.31 x 61.56 116.07 x 85.00 155.16 x 86.97 396.0 16 <0.05 (0.10) <0.04 (0.10) 55.6 M42x1 FD 16 539.2 200
购买
TC4MHR192-C 0.092 21.6 4/3″ 154.24 x 81.63 153.91 x 112.72 205.76 x 115.33 527.6 16 <0.05 (0.10) <0.04 (0.10) 97.8 C 679.1 260
购买
TC4MHR192-F 0.092 21.6 4/3″ 154.24 x 81.63 153.91 x 112.72 205.76 x 115.33 527.6 16 <0.05 (0.10) <0.04 (0.10) 97.8 F 650.1 260
购买
TC4MHR192-E 0.092 21.6 4/3″ 154.24 x 81.63 153.91 x 112.72 205.76 x 115.33 527.6 16 <0.05 (0.10) <0.04 (0.10) 97.8 M42x1 FD 16 680.7 260
购买
TC4MHR240-C 0.073 21.1 4/3″ 194.38 x 102.88 193.97 x 142.05 259.32 x 145.34 492.9 16 <0.05 (0.10) <0.05 (0.10) 155.4 C 827.3 322
购买
TC4MHR240-F 0.073 21.1 4/3″ 194.38 x 102.88 193.97 x 142.05 259.32 x 145.34 492.9 16 <0.05 (0.10) <0.05 (0.10) 155.4 F 798.3 322
购买
TC4MHR240-E 0.073 21.1 4/3″ 194.38 x 102.88 193.97 x 142.05 259.32 x 145.34 492.9 16 <0.05 (0.10) <0.05 (0.10) 155.4 M42x1 FD 16 828.8 322
购买

最后更新: 29 9月 2022

展开表格

注释

  1. 使用 IMX387(21.7 mm 对角线)探测器时,镜头的视场会在图像中 呈现出暗角。
  2. 工作距离:镜头最前端与物体之间的距离。 将该距离相对于标称值的偏差设定在 ± 3% 范围内可得到最佳分辨率与最小畸变。
  3. 工作 f 值 (wf/N):镜头作为微距镜头使用时的实际 f 值。可根据需要提供更小光圈镜头。
  4. 镜头内主光线的最大倾斜角度。列出了典型(平均)值和最大(保证)值。
  5. 实际图像相比理想化、无畸变图像的偏差率:列出了典型(平均)值和最大 (保证)值。
  6. 在景深的边缘,其图像依然能用于测量。 但为了获得锐度更佳的图像,应考虑采用标称景深的一半。用于计算的像素尺寸为 3.45 μm。
  7. 物方视场,使用 λ= 520 nm 的 Rayleigh (瑞利判据) 准则计算
  8. 表示集成相机相位调节功能的可用性。
  9. 从镜头最前端到相机法兰的长度。

技术文档

Product user guide

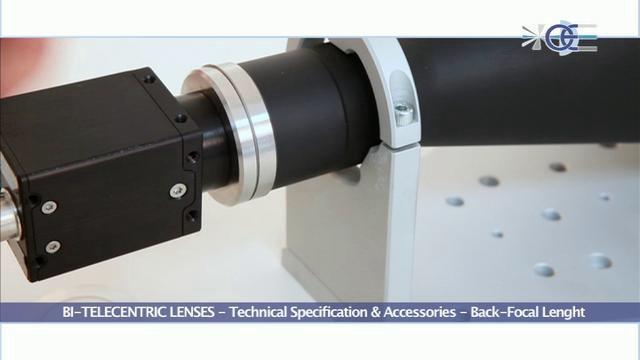

Back focal adjustment
