Image gallery

TC 系列

双远心镜头,最大支持 2/3" 面阵传感器

Automotive

Telecentric image of an engine shaft

Rotor part acquired with a telecentric lens

Image of a pipe sampled by a TC lens

Image of a coil spring acquired with a telecentric setup

Electronics

BGAs

Pins

PCB printed circuit board

Hard disk head arm

Mechanical

Hair springs

Watch gears

Screws

Nuts

Glass & pharma

Glass

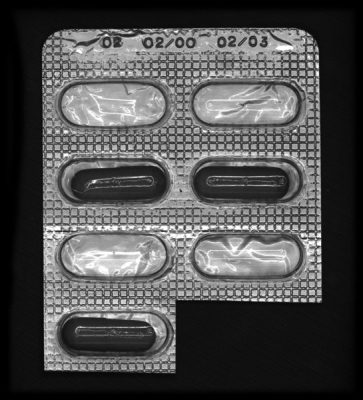

Blister packs

Vials

Needles

TC16M 系列

远心镜头，最大支持 43.3 mm 和 8k 线扫描相机的传感器

Electronics

Electronic board imaged with a TC16M telecentric lens

TC16M sample with collimated backlight

TC16M sample with collimated backlight

TC16M sample with collimated backlight

TC16M sample with collimated backlight

TCDP PLUS 系列

TCDP PLUS 系列

双倍率远心镜头

Electronic board imaging

Full FOV image with lens lower magnification

2x magnified image of the object central area

Mechanical component imaging

TCZRS 系列

带电动控制的双远心变焦镜头

Electronic board at four different magnifications

Board a

Board b

Board c

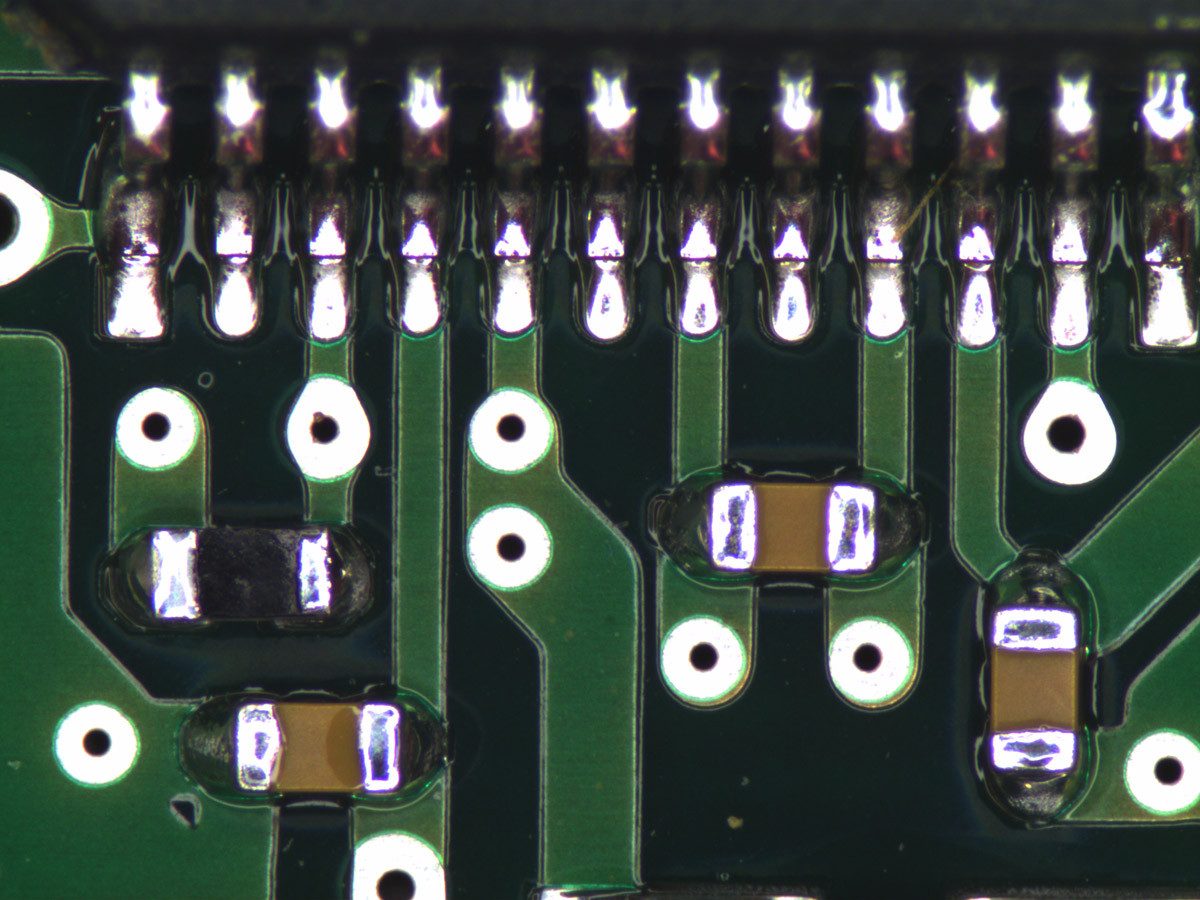

Board d

Hard disk arm at four different magnifications

Arm a

Arm b

Arm c

Arm d

PC 系列

环外侧镜头，仅需一台相机便可拍摄 360° 顶部及侧面图像

Examples of pericentric images

Reading a label on the side of a jar, with a PC lens positioned on top.

Full inspection of a battery with a PC-series optics.

Inspecting the threads of a bottle neck.

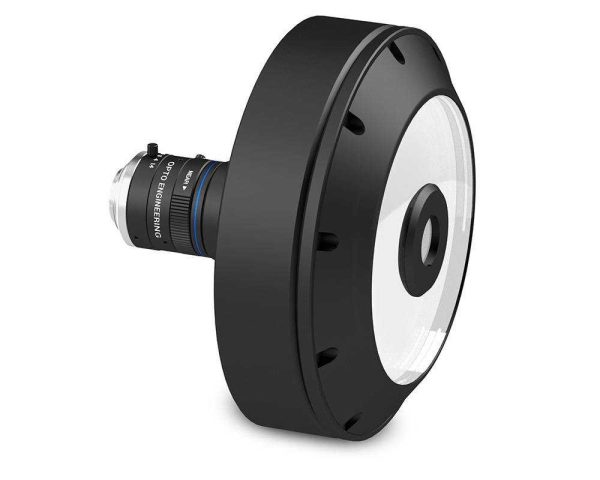

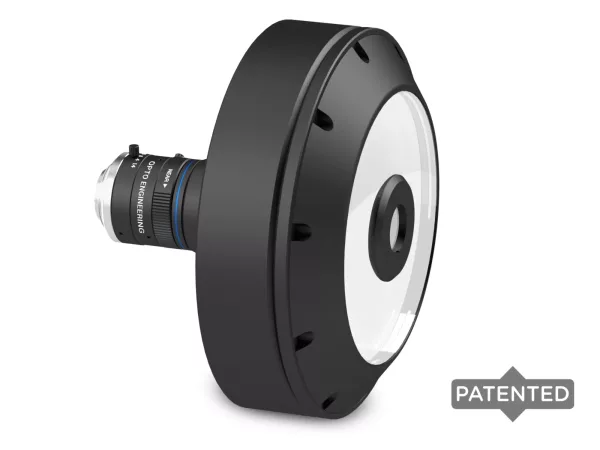

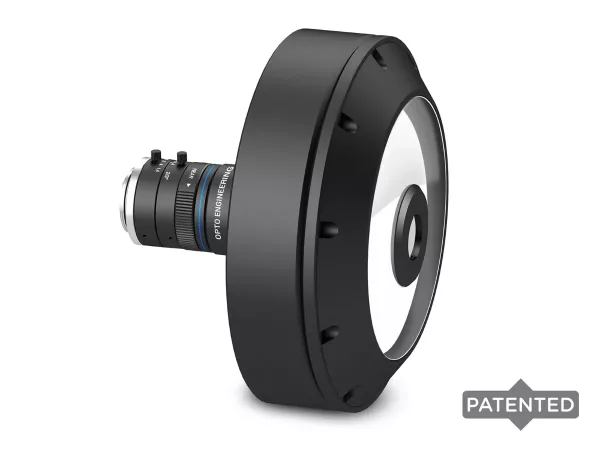

PCCD 系列

仅需一台相机便可拍摄 360° 顶部及侧面图像的折反射镜头

Sample images taken with PCCD lenses

检测瓶盖，检测塑料挡圈的完整性

检测瓶颈的螺纹

A small cap imaged with a catadioptric lens: both the top and side surfaces are perfectly focused.

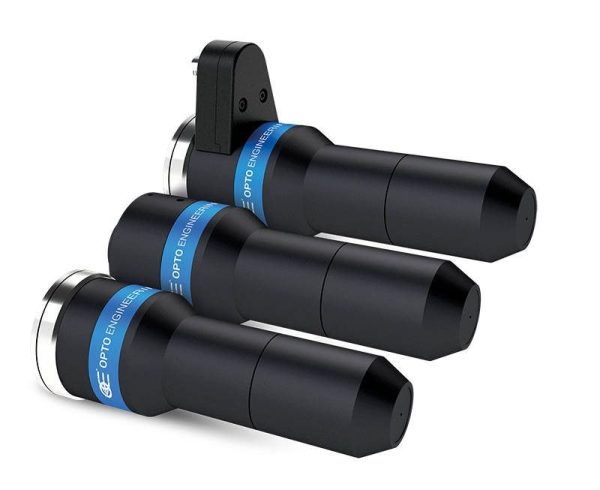

PCHI 系列

内孔检测光学系统，用于 360° 拍摄完美对焦的内部图像

Examples of images taken with PCHI

Mechanical part inspection with PCHI

Conical cavity inspection is possible from both sides

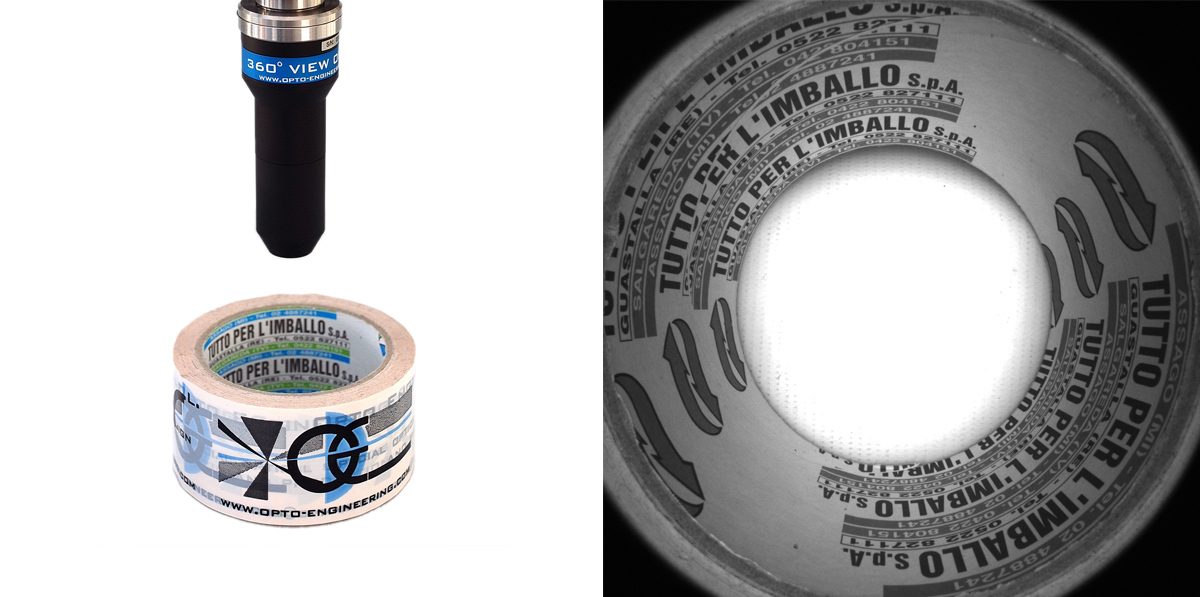

The entire depth of a hole, writings inside a cavity, as well as scratches and tiny defects are easily imaged

Square, polygonal or irregular cross section objects can be inspected

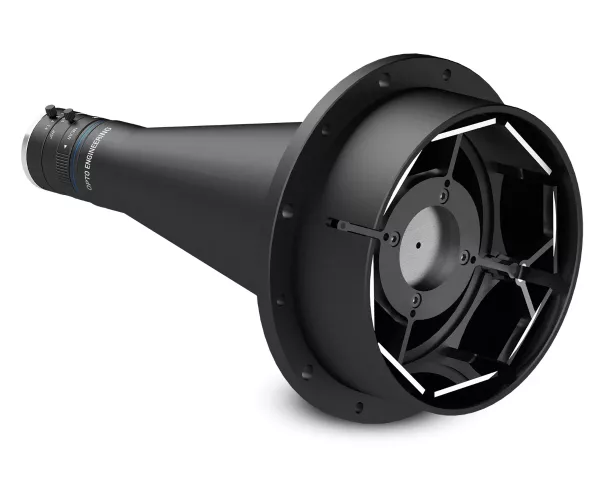

PCPW系列

多视角光学系统，一次拍摄多个不同视角

Sample images taken with PCPW optics

Sample 01

Sample 02

Sample 03

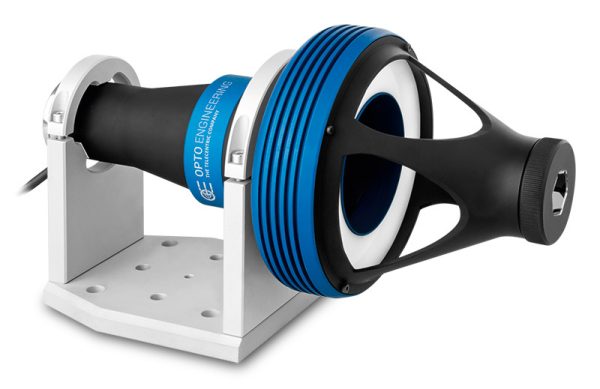

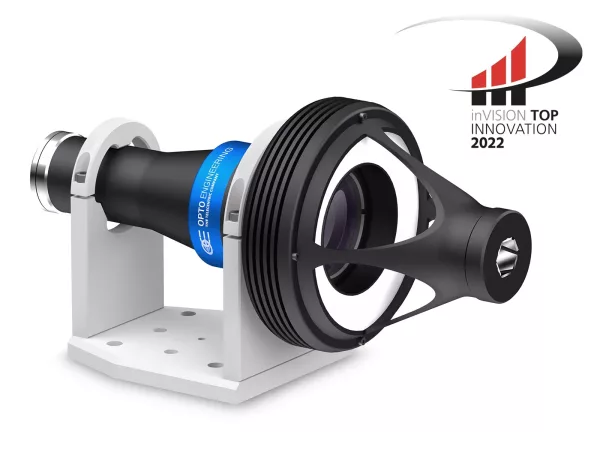

PCMP 系列

多视角镜头，用于小部件的测量与成像

Sample application of PCMP optics

Mechanical components inspection: thread integrity, pitch and diameter can be verified and measured

SMD component inspection: integrated circuit position, rotation, pin integrity and bonding can be checked.

Electronic connector checking: presence/absence, alignment and length of pins can be precisely measured.

LED quality control: lens scratches, die centering and correct wiring can be inspected and measured.

Other samples of PCMP imaging

Sample connettore gen

Sample avvolgimento

Sample integrato

TCCAGE 系列

双远心系统，用于 90 度角下的多侧成像和测量

Sample applications of TCCAGE imaging

360° gasket attachments viewed with TCCAGE

Vials inspected with TCCAGE

Checking needles with TCCAGE

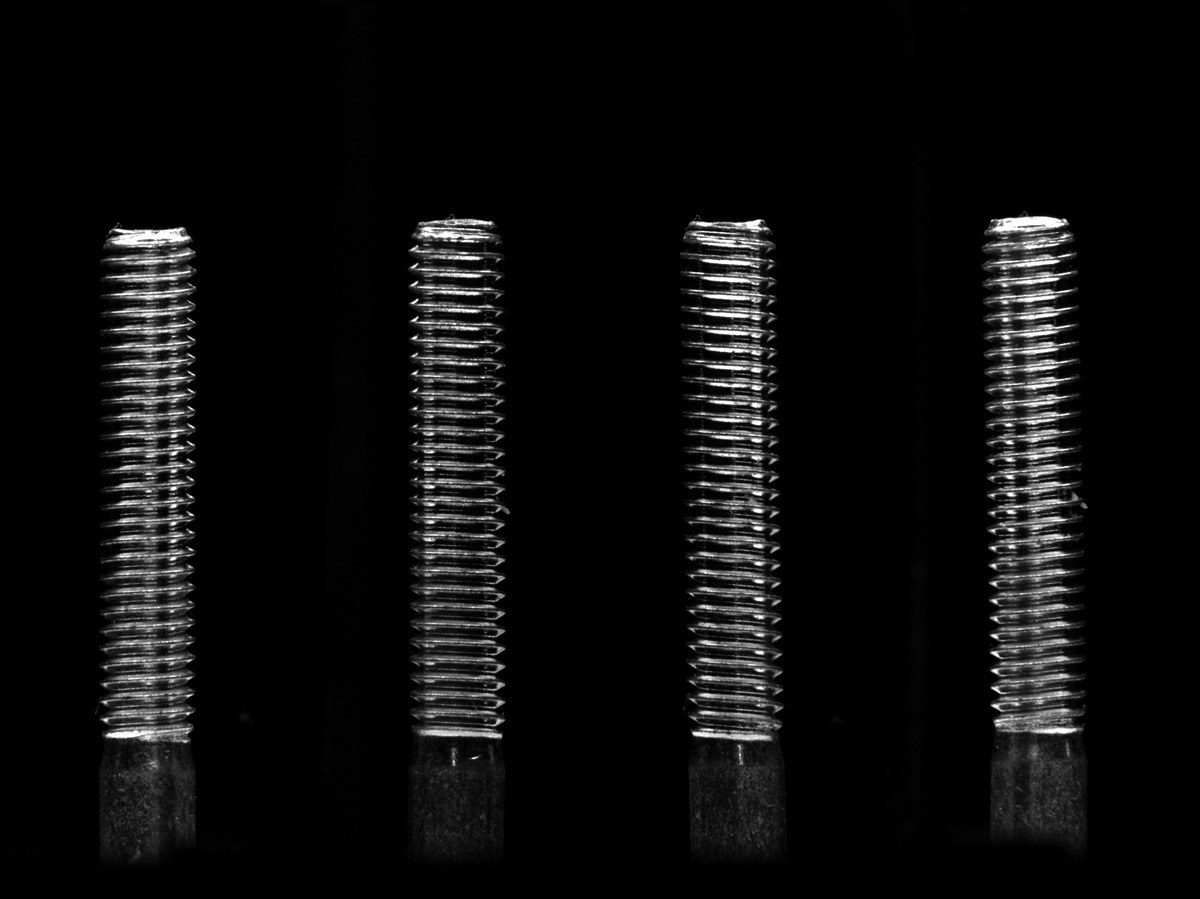

A screw imaged from four sides simultaneously

MCSM1-01X

带有 Scheimpflug 调节机制的可变微距镜头

MCSM1-01X image a sample from an angled point of view

MCSM1-01X image a sample from an angled point of view

MCSM1-01X image a sample from an angled point of view

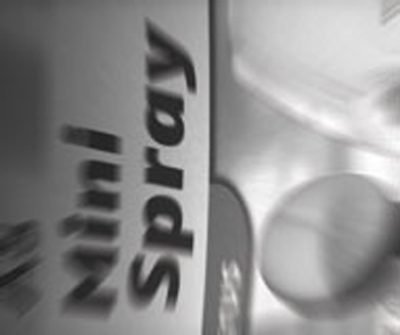

Without tilt adjustment, the object is not homogeneously focused

At the Scheimpflug angle, the image becomes sharp.

MC 系列

几乎零畸变微距镜头，适用于高达2/3”传感器

MC application samples

Sample 06

MC3-03X 微距

几乎零畸变多配置微距镜头

MC3-03X output samples

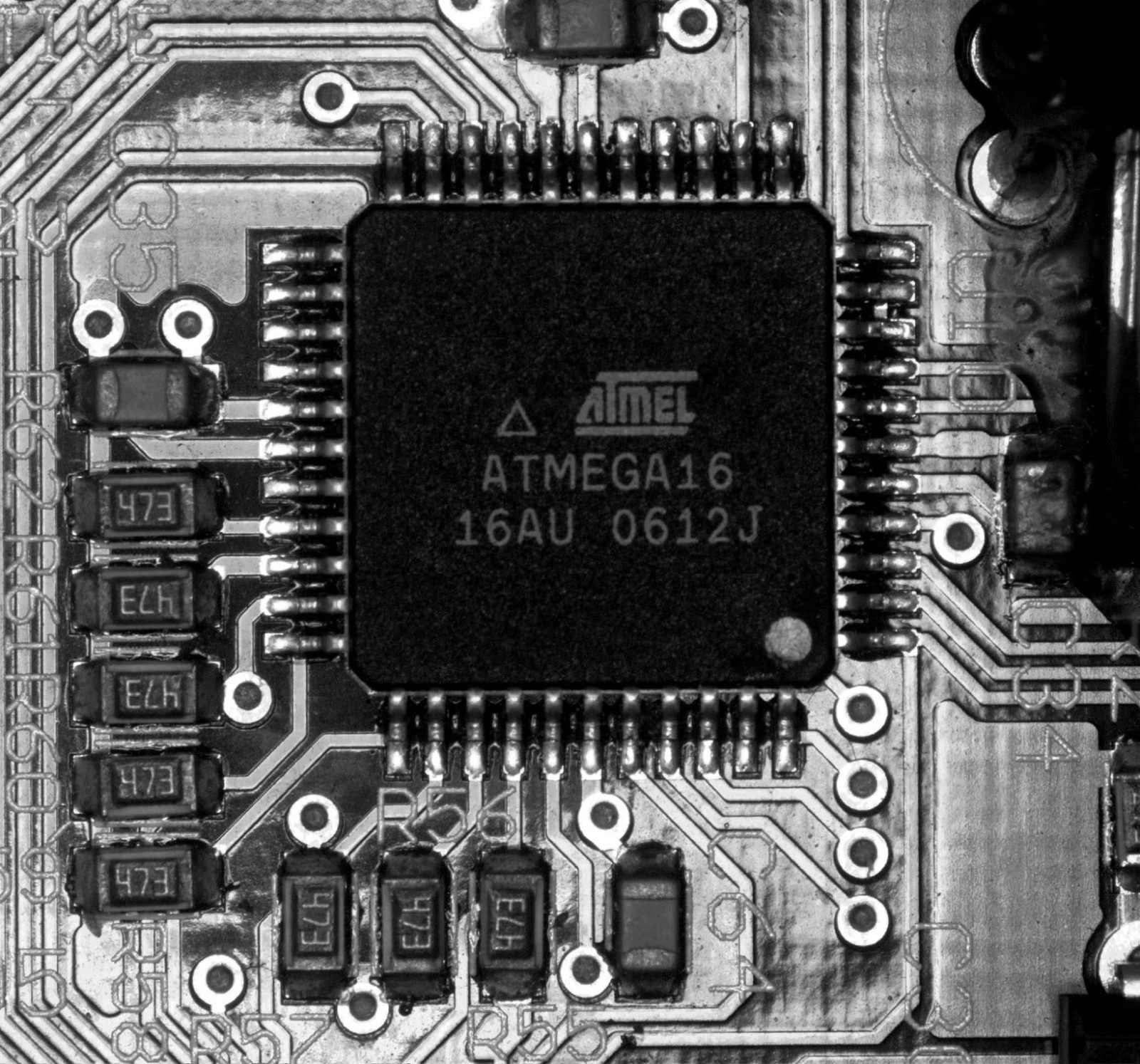

Output 01

Output 02

Output 03

Output 04

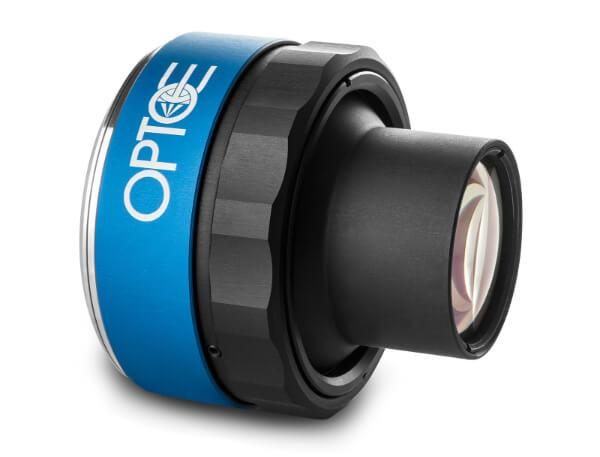

Example of SWIR imaging

Interior of a car: SWIR image taken with Opto E SW05020 lens and ABS GmbH SWIR camera IK1523. Image courtesy of ABS GmbH

Enhanced Imaging: SWIR image taken with Opto E SW05020 lens and ABS GmbH SWIR camera IK1523. Image courtesy of ABS GmbH

Inspection of liquid levels: SWIR image taken with Opto E SW05020 lens and ABS GmbH SWIR camera IK1523. Image courtesy of ABS GmbH

Inspection of liquid levels: SWIR image taken with Opto E SW05020 lens and ABS GmbH SWIR camera IK1523. Image courtesy of ABS GmbH

Detection of bruises on fruit. SWIR image taken with Opto E SW05020 lens and ABS GmbH SWIR camera IK1523. Image courtesy of ABS GmbH

Silicon is transparent in the SWIR waveband. SWIR image taken with Opto E SW05020 lens and ABS GmbH SWIR camera IK1523. Image courtesy of ABS GmbH

Solar cell inspection. SWIR image taken with Opto E SW05020 lens and ABS GmbH SWIR camera IK1523. Image courtesy of ABS GmbH

Inspection of liquid levels: SWIR image taken with Opto E SW05020 lens and ABS GmbH SWIR camera IK1523. Image courtesy of ABS GmbH
