FabImage® Studio Professional
概述
相关的
Licensing model
Deep Learning
Features
Quote
资源

核心优势

    • 无需掌握基础编程知识
    • 基于数据流的软件
    • 快速且经过优化的算法
    • 超过 1000 种高性能函数
    • 自定义机器视觉滤光片
发现更多

Developer Licenses

Runtime Licenses

Service License

Three types of Licenses are available:

  • Developer Licenses: Licenses required to develop a vision program

  • Runtime Licenses: Licenses required to run a vision program. To purchase a Runtime License, you must have purchased a Developer License.

  • Add-on Licenses: Additional Licenses that allow you to expand the functionality of the other two types of Licenses.

Developer Licenses

Basic License

The Developer License is assigned to a single developer user and can be activated only via USB dongle.

Free Technical Support services are included for the first 12 months after activation, such as:

  1. Most up-to-date version of the software with associated new features and documentation*
  2. Answers, via email, to technical questions related to the use of the software

After 12 months from the activation of the Developer License, it is necessary to purchase a Service License (FIS-EXT) in order to:

  • purchase additional Single Thread Runtime Licenses (FIS-RUN).

  • take advantage of the Technical Support services.

* To obtain the most up-to-date version of the software, you must send Opto Engineering the WIBU file associated with the USB dongle of the License you wish to have the upgrade on. Learn more about how and where to download the WIBU file at https://docs.fab-image.com/stu...

P/N

Description

Category

Features

FIS-PRO

FabImage® Studio

Developer Basic License

Development environment (IDE) for programming in graphical form.


  1. Allows creating complete machine vision applications, including HMIs.

  2. Allows programming in graphical form and subsequently generating Macrofilter .NET interfaces.

3) Includes the User Filters (Custom Filter) feature, which allows user-written C++ code with libraries outside the FabImage® Library Suite to be incorporated into the graphical programming model

4) Allows multi-camera acquisition and development of processes (macrofilters) sequentially (single thread)

USB-DONGLE-FI

USB Dongle

Hardware

Required to activate the License via hardware USB dongle.

展开表格

ADD-ON Licenses

ADD-ON Licenses** are additional Licenses that allow you to expand the functionality of the Basic License. To purchase ADD-ON Licenses, you must have previously purchased a Developer FabImage® Studio (FIS-PRO) License.

** To order an ADD-ON License, you must also send the WIBU file associated with the USB dongle of the developer for which you wish to activate the add-on. Read more about how and where to download the WIBU file at this link
*** It is not possible to build multiple macrofilters with Deep Learning that work in parallel.

P/N

Description

Category

Features

FIS-CODE-ADD

Code Generator for those who have purchased FabImage® Studio and also want to use FabImage® Library Suite libraries

Developer ADD-ON License

Enables the user to transform applications made in FabImage® Studio Professional (FIS-PRO) into C++ code.

The package of FabImage® Studio + Code Generator ADD-ON (FIS-PRO + FIS-CODE-ADD) allows users to integrate and take advantage of the FabImage® Library Suite (FIL-SUI). The user can employ the development environment for either graphical programming or direct programming in C++ or .NET.

To run the application in C++, the FabImage® Library Suite Runtime License (FIL-RUN) must be ordered.

FIS-PAR-ADD

Parallel Processing ADD-ON for those who have purchased FabImage® Studio (FIS-PRO)

Developer ADD-ON License

Allows the user to:

  1. Build multiple processes (macrofilters) working in parallel.

  2. Acquire from multiple cameras in parallel

FI-DL-ADD

FabImage® Deep Learning ADD-ON for those who have already purchased FabImage® Studio (FIS-PRO)

Developer ADD-ON License

Allows the user to use Deep Learning Tools ***.
Visit the Deep Learning section for more information.

展开表格

Runtime Licenses

Runtime License SINGLE THREAD

The Runtime License is assigned to a single vision system and allows multi-camera acquisition and execution of processes (macrofilters) sequentially (single thread).

It can be activated via two options:

  • USB Dongle (USB-DONGLE-RUN)

  • Computer ID*

To purchase a Runtime License for a Single Thread, you must have purchased the FabImage® Studio Developer License (FIS-PRO). After 12 months from the activation of the Developer License, you are required to purchase the Service License (FIS-EXT) to continue purchasing Single Thread Runtime Licenses.

* In case the License is lost through damage to the Computer, to which it is assigned by Computer ID, it cannot be recovered and a new one must be purchased. Opto Engineering recommends the option to purchase the license via USB dongle.

P/N

Description

Category

Features

FIS-RUN

FabImage® Studio Runtime

Runtime License

Allows you to run an unlimited number of processes (macrofilters) sequentially. A particular advantage offered by this License is that it makes it easy to introduce changes, such as modifying and reloading recipes, even directly on the production line

USB-DONGLE-RUN

USB Dongle (Optional)

Hardware

The License is activated via USB dongle

展开表格

Runtime License MULTITHREADING

In order to run the Parallel Processing (FIS-PAR-ADD) features, you must purchase one of the following Runtime Licenses (these Runtimes replace the FabImage® Studio Single Thread Runtime (FIS-RUN)). To run an unlimited number of processes in parallel, it is recommended to purchase the Runtime License corresponding to the number of cores on the machine vision computer.

To purchase a Multithreading Runtime License, you must have purchased a Developer FabImage® Studio (FIS-PRO) and a Developer Parallel Processing ADD-ON License (FIS-PAR-ADD). After 12 months from the activation of the Developer Parallel Processing ADD-ON License (FIS-PAR-ADD), you are required to purchase a Service License (FIS-EXT) if you wish to continue purchasing Multithreading Runtime Licenses.

* To run an unlimited number of processes in parallel, we suggest purchasing the Runtime License, which limits the number of PC cores

P/N

Description

Category

Features

FIS-RUN-CL-XX

FIS-RUN-CL-4

FabImage® Studio Runtime for a 4-core machine vision computer

ADD-ON Runtime License for Parallel Processing

Allows running an unlimited number of processes in parallel. Requires a PC with 4 cores.

FIS-RUN-CL-6

FabImage® Studio Runtime for a 6-core machine vision computer

ADD-ON Runtime License for Parallel Processing

Allows running an unlimited number of processes in parallel. Requires a PC with 6 cores.

FIS-RUN-CL-8

FabImage® Studio Runtime for a 8-core machine vision computer

ADD-ON Runtime License for Parallel Processing

Allows running an unlimited number of processes in parallel. Requires a PC with 8 cores.

FIS-RUN-CL-16

FabImage® Studio Runtime for a 16-core machine vision computer

ADD-ON Runtime License for Parallel Processing

Allows running an unlimited number of processes in parallel. Requires a PC with 16 cores.

FIS-RUN-TL-XX*

FIS-RUN-TL-2

FabImage® Studio Runtime limited to 2 Threads

ADD-ON Runtime License for Parallel Processing

Enables the use of PCs with any number of Cores. The number of parallel processes is limited to 2 threads.

FIS-RUN-TL-4

FabImage® Studio Runtime limited to 4 Threads

ADD-ON Runtime License for Parallel Processing

Enables the use of PCs with any number of Cores. The number of parallel processes is limited to 4 threads.

FIS-RUN-TL-6

FabImage® Studio Runtime limited to 6 Threads

ADD-ON Runtime License for Parallel Processing

Enables the use of PCs with any number of Cores. The number of parallel processes is limited to 6 threads.

FIS-RUN-TL-8

FabImage® Studio Runtime limited to 8 Threads

ADD-ON Runtime License for Parallel Processing

Enables the use of PCs with any number of Cores. The number of parallel processes is limited to 8 threads.

FIS-RUN-TL-16

FabImage® Studio Runtime limited to 16 Threads

ADD-ON Runtime License for Parallel Processing

Enables the use of PCs with any number of Cores. The number of parallel processes is limited to 16 threads.

展开表格

ADD-ON Runtime License DEEP LEARNING

In order to run the Deep Learning ADD-ON features, the following Runtime License must be purchased in addition to the FabImage® Studio Runtime (FIS-RUN).

To purchase the Deep Learning Runtime ADD-ON, you must have purchased a FabImage® Studio Developer License (FIS-PRO) and a Developer Deep Learning ADD-ON License (FI-DL-ADD). After 12 months from the activation of the ADD-ON Developer License (FI-DL-ADD), you will be required to purchase the Service License (DL-EXT), if you wish to purchase a Deep Learning ADD-ON Runtime License.

* Multiple GPU cards cannot be used for inference

P/N

Description

Category

Features

FIS-RUN-DL

FabImage® Studio Deep Learning Runtime ADD-ON

Deep Learning ADD-ON Runtime License.

Enables the user to execute single-threaded Deep learning*

展开表格

Service License

After 12 months from the activation of the FabImage® Studio License (FIS-PRO) or Developer ADD-ON Licenses (FIS-CODE-ADD, FIS-PAR-ADD and FI-DL-ADD) it is required to purchase one of the following Service Licenses for:

  1. Purchasing Additional Single-Threaded Runtime Licenses (FIS-RUN or FIL-RUN) or Multithreaded Runtime Licenses (FIS-RUN-CL-xx or FIS-RUN-TL-xx)
  2.  Purchase Additional Deep Learning ADD-ON Runtime Licenses (FIS-RUN-DL)
  3.  Maintaining active technical support

P/N

Description

Category

Features

FIS-EXT

FabImage® Studio EXTENSION

Service License

License required for:

  1. Purchasing Additional Single-Threaded Runtime Licenses (FIS-RUN)

  2. Purchasing Additional Multithreading Runtime Licenses (FIS-RUN-CL-xx or FIS-RUN-TL-xx)

  3. Maintaining active technical support

ADD-EXT

FabImage® Studio + Code Generator ADD-ON EXTENSION


Service License


License required for:

  1. Purchasing Additional Single-Threaded Library Runtime Licenses (FIL-RUN)
  2. Maintaining active technical support

DL-EXT*

FabImage® Deep Learning ADD-ON EXTENSION

Service License

License required for:

  1. Purchasing Additional Single-Threaded Deep Learning Runtime Licenses (FIS-RUN-DL)
  2. Maintaining active technical support
展开表格

簡介

Fabimage Deep Learning Add-on 創建了機器視覺技術的新標準。這些經過長時間驗證的可靠工具在經過20-50張影像的 訓練後,就具備自動檢測物體、缺陷和各種特徵的能力。Adaptive Vision的研發團隊運用大量的神經網路和自我設計的WEAVER推論引擎研發出全新一代的高效能深度學習軟體, 非常適合用在工業檢測系統。

為了讓您建構更完整和功能更強大的機器視覺系統方案,它結合Fabimage Studio Professional全圖控操作界面,輕鬆開發傳統機器視覺和深度學習的演算法。

核心优势

從少數樣本中學習

一般的應用僅需要約20到50張影做訓練即可。愈多訓練的效果愈好,但我們的軟體根據訓練庫的主要參數屬性,內部將自動產生數以千計 新的人造影像,讓訓練更有效率。

運行在GPU和CPU

為了讓訓練更有效率,需要新一代的繪圖處理器(GPU)。在生產線上,您可以視需選用GPU或CPU,而GPU的處理時間會比CPU快3到10倍。(Object Classification的運行速度CPU和GPU一樣快)。

最佳性能

一般在GPU的訓練時間大約是5到15分鐘。推論時間的長短每張影像介於5到100毫秒,它和選用的工具與硬體有關。工業級的推論引擎 WEAVER可以保證最佳的性能。

訓練步驟

1. 收集影像並進行歸一化

  • 取得20到50張影像,好壞都要,影像要盡可能涵蓋物件的變化,並儲存到硬碟裡。
  • 影像中物件的比例、方向和明暗盡可能保持一致。

培训

  • 打开FabImage Studio Professional并添加一个Deep Learning Add-on工具
  • 打开与该工具关联的编辑器,并在那里加载培训图像
  • 使用绘图工具标记图像或添加标记
  • 点击“培训”

訓練庫和驗證庫

在深度學習中如同在機器學習的各個領域一樣,遵循正確的方法是非常重要的。最重要的規則是將訓練庫和驗證庫分開。 訓練庫是用於創建模型的一組樣本。我們不能用它來衡量模型的性能,因為這通常會產生過於樂觀的結果。因此,我們使用不同的數據(驗證庫)來評估模型。我們的深度學習工具會根據用戶提供的樣本自動創建這兩種資料庫。

執行

  • 運行程式並查看結果
  • 返回步驟1或2直到結果完全令人滿意。

特征检测

在監督模式下,用戶需要小心翼翼地根據訓練庫中的影像去標註缺陷的位置。該工具藉由尋找關鍵特徵去學習判斷好與壞。

太陽能板檢測

在這個應用中,必須在具有複雜特徵的背景上檢測出破損和刮傷。若用傳統的方法,將需要複雜的演算法,並針對每一種太陽能板調整數十種參數。使用深度學習,只需要一種工具就可以在監督模式下做訓練。

衛星影像識別

衛星影像不容易解析,因為它涵蓋非常多的特徵。不過,我們的深度學習軟體透過訓練可以非常穩定且可靠的區別道路和建築物。

異常檢測

非監督式模式的訓練更加簡單,沒有固定缺陷定義。我們的軟體將樣品圖像並進行訓練。此後尋找任何偏差。

包裝驗證

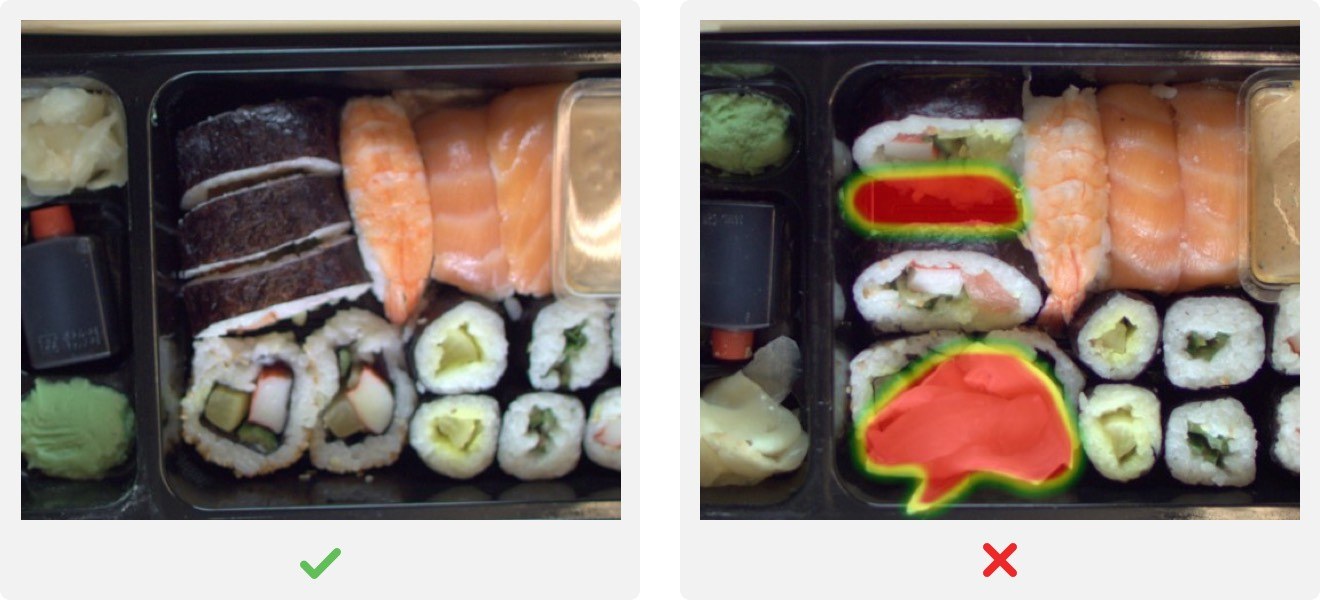

當壽司盒出貨到市場時,什麼位置放什麼食材都是固定的。雖然同一種食材的外觀不完全相同但可以接受, 而食材的缺陷卻不容易被定義。 解決方式是採用半監督模式去檢測到該工具在訓練期間所經歷的任何重大改變。

塑膠射出成型檢測

射出成型是一個複雜且伴隨許多生產問題的製程。塑膠件可能會折疊或其它形狀的變異,但對客戶來說都是可以接受的。 我們的深度學習工具可以從提供的樣本中接受這種變異,並在生產線上找出有任何異狀的不良品。

物件分類

物體分類工具根據物體的特徵將所提供的輸入圖影像為用戶特定的幾組。其結果為類別名稱和分類置信度。

瓶蓋:正面或反面

塑膠瓶蓋在生產時有時會不經意地翻面。假如客戶想要檢測這種情況,完全可以用傳統的視覺檢測方式做到, 只是它需要一位專家針對此應用設計特定的演算法。另一種方案,我們可以採用以深度學習為基礎的物件分類功能, 從訓練的影像庫中,自動學習瓶蓋的正反面。

3D鋁合金輪圈識別

一家工廠可能生產數以百計樣式不同的鋁合金輪圈。使用傳統的視覺檢測方式要在這麼多樣化的產品中識別出一個特定的輪圈, 實際上是不可能的。模板比對需要大量的時間嘗試從數百個模板中做匹配,而這些模板必須手工逐一訂製, 耗費太多開發和維護時間。而深度學習是一個相當理想的解決方案,它可以讓程式直接從影像庫中學習並訓練, 其結果非常的穩定且可靠。

個體區分

個體區分技術被用來在一張影像中定位、區隔和分類單一或多重物件。它不同於Feature Detection(特徵識別)技術,它可以找出個別的物件,即使物件互相接觸或是重疊也能夠正確區分。

堅果分類

混合堅果是一種非常受歡迎包含各種形狀堅果的休閒食品。由於包裝中堅果的成份百分比應和標籤上印刷的成分清單一致, 客戶希望確保每一種類型的正確數量都可以填充到包裝裡。Instance Segmentation (個體區分) 工具針對這種應用是非常理想的解決方案,因為它能區分物體跟物體間的範圍並返回被分割對象相對應的蒙版。

包裝驗證

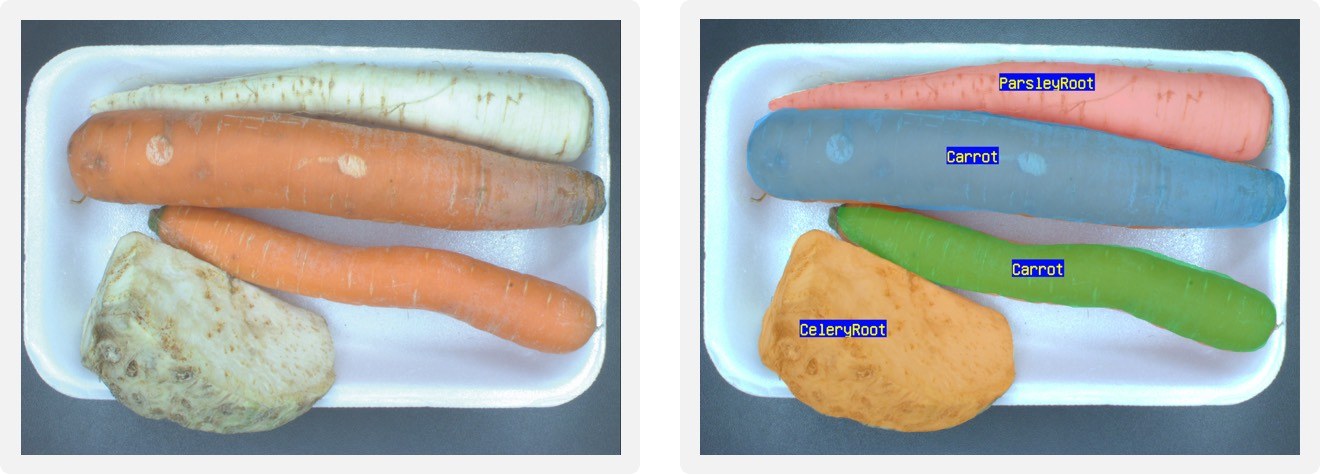

歐洲常見的湯類蔬菜組合包是以隨機位置包裝在白色塑膠盤上。生產線作業員有時會忘記將某一種蔬菜放到盤子上。 雖然有秤重系統做把關,但客戶在包裝密封前還是想知道商品是否完整。由於不會有兩種蔬菜看起來是完全相同的, 最理想的解進方案是採用深度學習為基礎的分類法。在訓練階段,客戶只須要在所選的蔬菜上做標註即可。

特徵點定位

特徵點定位工具在影像中尋找獨特的形狀、特徵或記號做為定位點。和傳統的模板比對進行比較,這個工具會進行多次的樣本訓練, 避免因物件的變異影響定位的可靠度。

蜜蜂跟隨

使用我們的深度學習工具可以完成傳統影像處理方法似乎無法實現的任務。在這種情況下,我們可以使用深度學習來檢測蜜蜂, 當訓練完成時,我們可以檢查蜜蜂們是否感染了變色病-由寄生蟎侵襲蜜蜂所引起的疾病。寄生蟲會依附在他們的身體上, 並根據紅色斑點的發炎狀況來檢視他們是否健康。不會只有這個案例讓複雜的任務簡單化, 同時我們對於許多不同的產業是抱持著開放的態度,例如農業。

取放

在這些應用案例中,我們需要引導機器手臂抓取物品,最典型的是從輸送帶或容器中抓取物品。 有一個好的案例是抓取小的莖梗,然後將其垂直放置在花盆中。過程中檢測到任何不正確之處, 都有可能導致種植過深或上下顛倒,將導致根部無法順利生長。我們的深度學習工具可以快速定位植物的部位, 並提供準確的結果。
