ITALA G.EL series
概述
模型
Software
下载
相关的
联系我们
New
传感器格式
1/1.8 - 1.1 ″
Resolution
3.2 - 12 MP

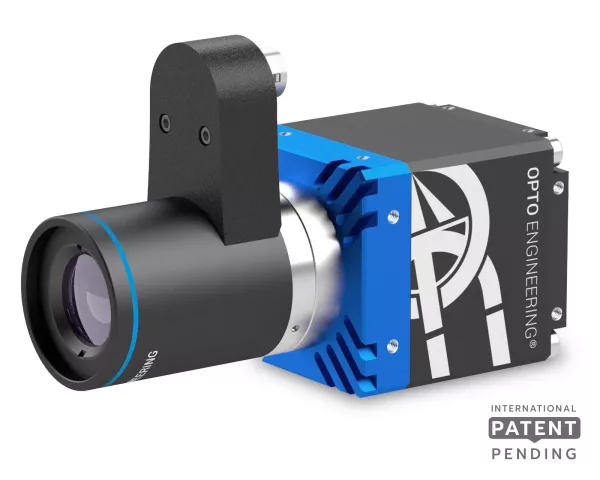

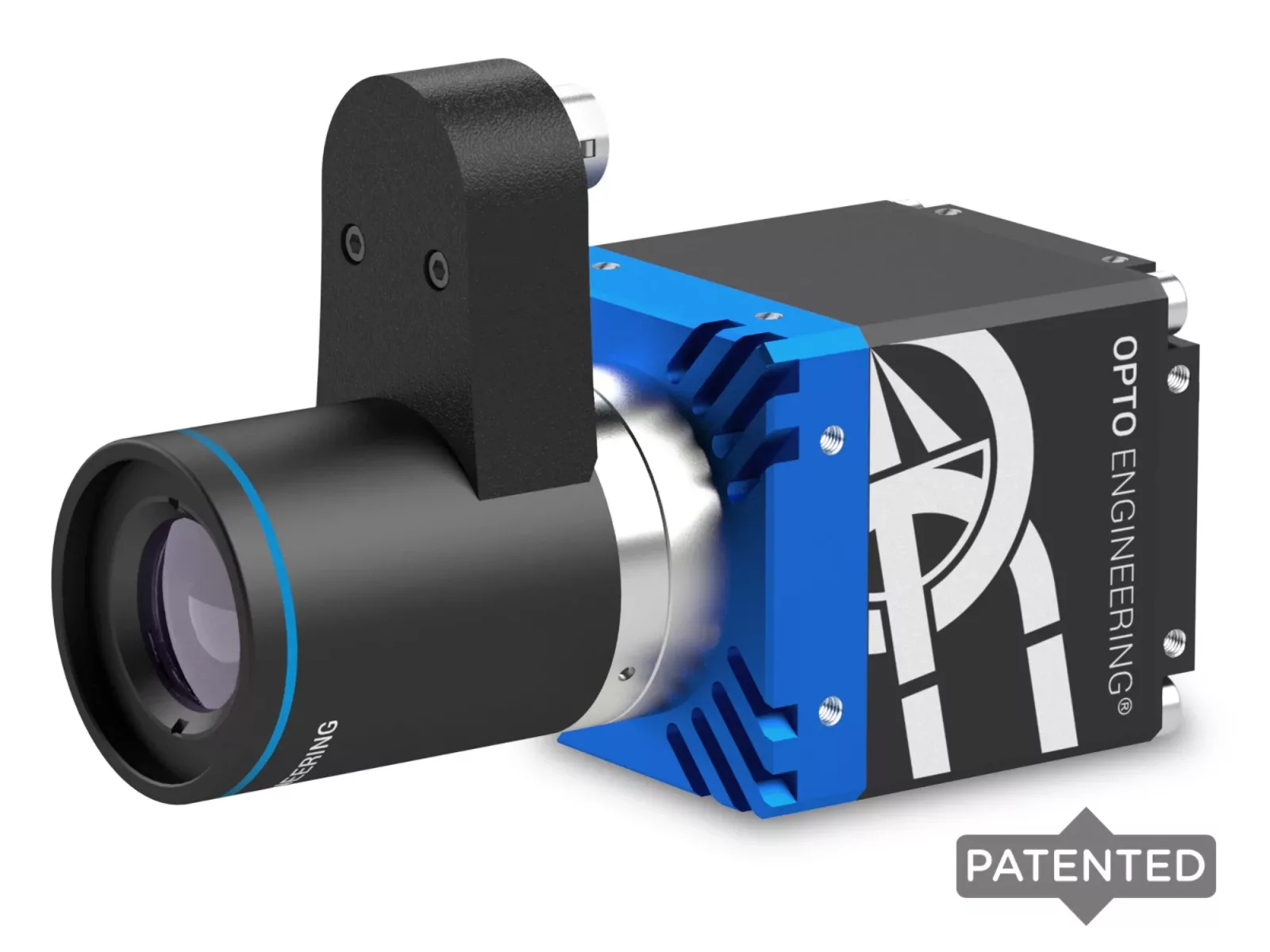

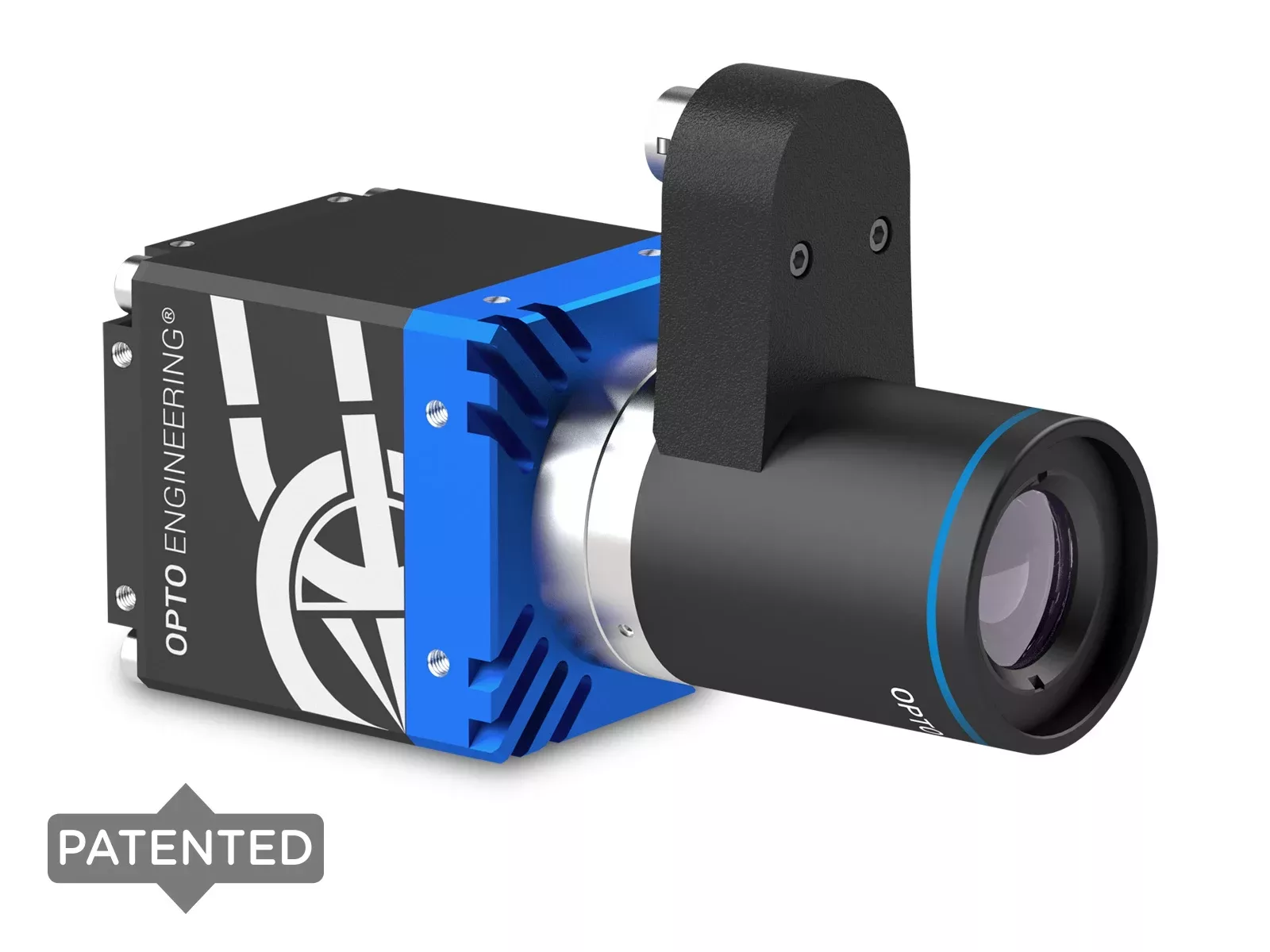

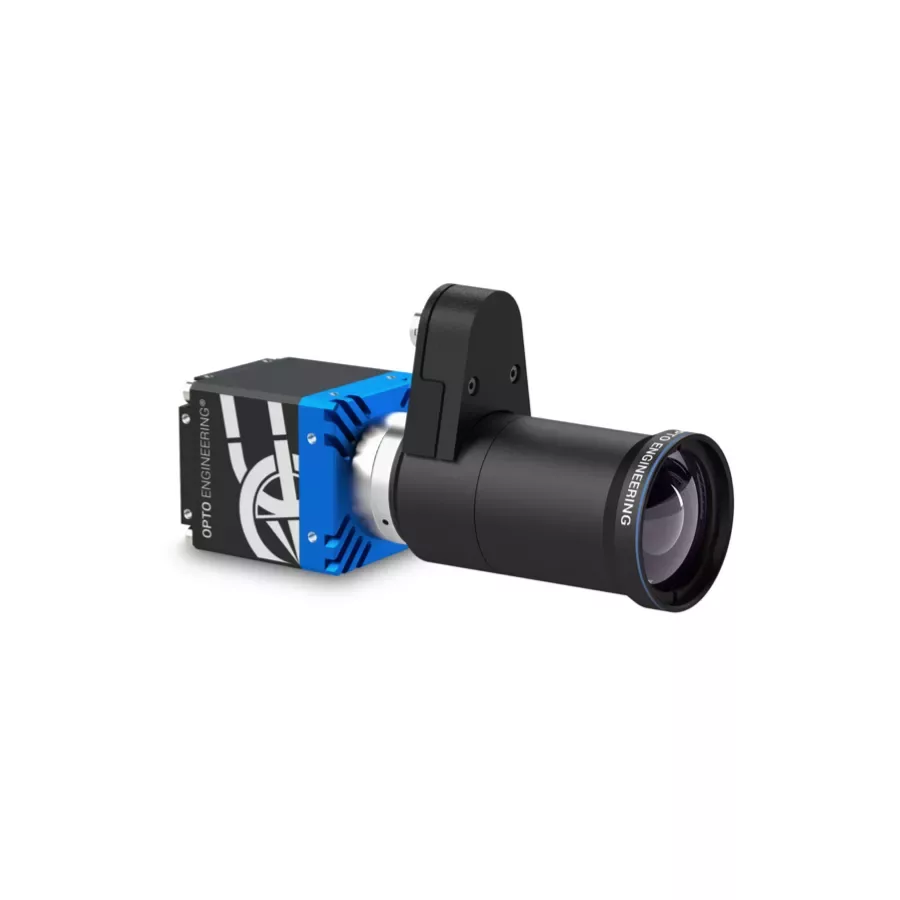

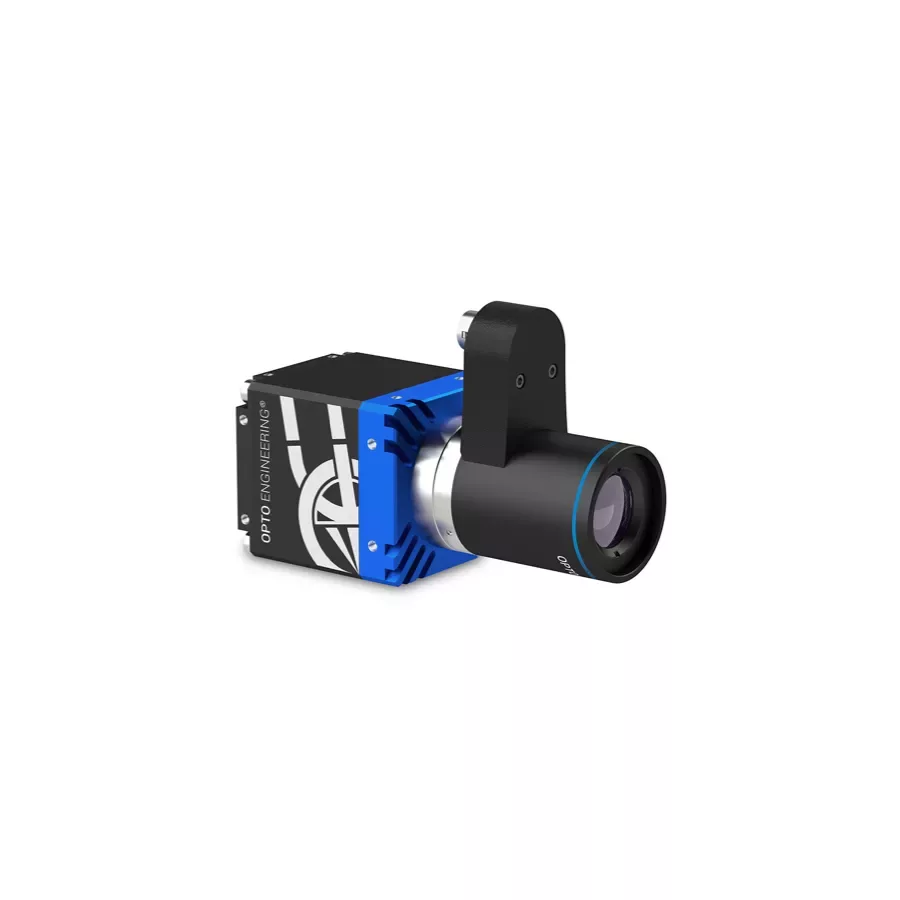

ITALA G.EL is a series of GigE Vision industrial cameras with integrated liquid lens control designed and built in Italy by Opto Engineering®. With resolutions ranging from 3.2 MP to 12 MP, the ITALA G.EL cameras allow to simplify the integration of Optotune® liquid lenses thanks to a built-in driver to avoid an external dedicated hardware.

核心优势

No external driver needed.

  • Aluminum body & steel lens mount.
  • Shock & Vibration certified.
  • Wide temperature range.

Cameras designed and manufactured in Italy by Opto Engineering®.

Isolated PoE supply
Simplified cable harness with data and power over a single cable.

Broad range of I/Os
Industry standard Hirose 12 pin connector for a broad range of I/Os and special functions.

Serial communication
Combo RS232/485 transceiver for maximum flexibility.

Large on-board image buffer
Never miss a frame and take advantage of burst mode acquisition.

Large FPGA
To manage / host a wide range of camera functions.

  • 5 years warranty.
  • Dedicated support for the integration directly from the manufacturer.
  • Fast replacement service with shipment from Italy in max 48 h.

质量保证

Complete electronic testing
Complete electronic testing

All the features of our cameras are check to ensure perfect operation.

Burn-in test
Burn-in test

Each camera undergoes severe testing to avoid possible early failures.

Sensor alignment
Sensor alignment

We check the sensor alignment of each camera to ensure maximum performance.

EMVA 1288 test
EMVA 1288 test

Each camera is tested according to the EMVA1288 standard.

服务

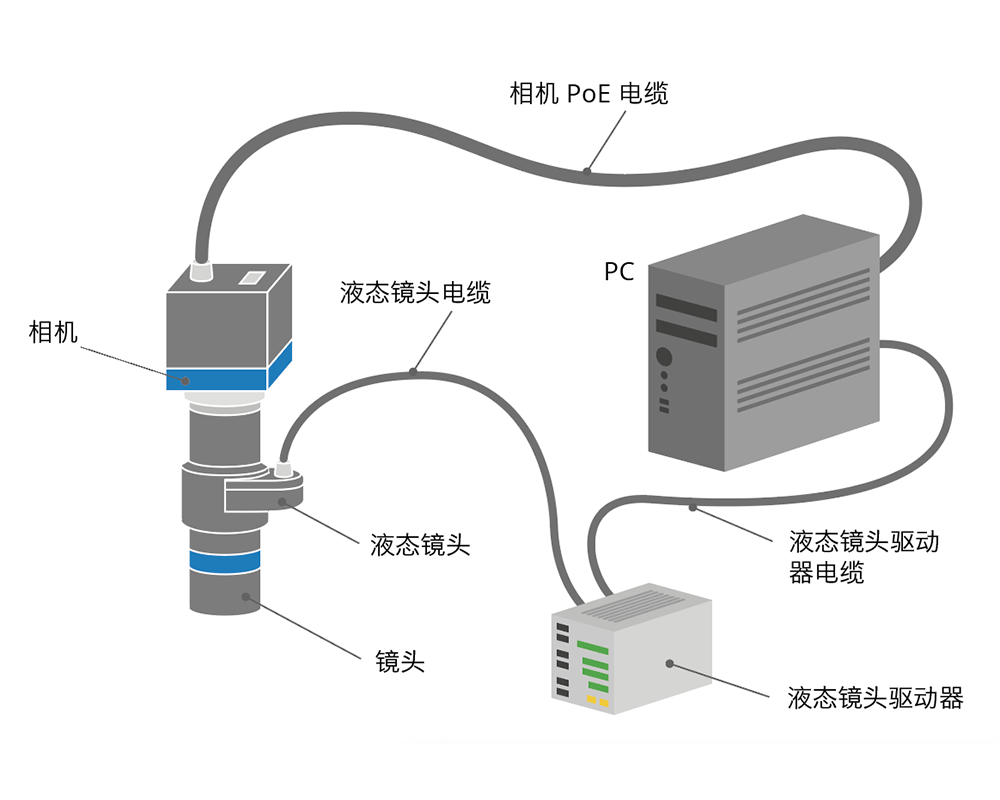

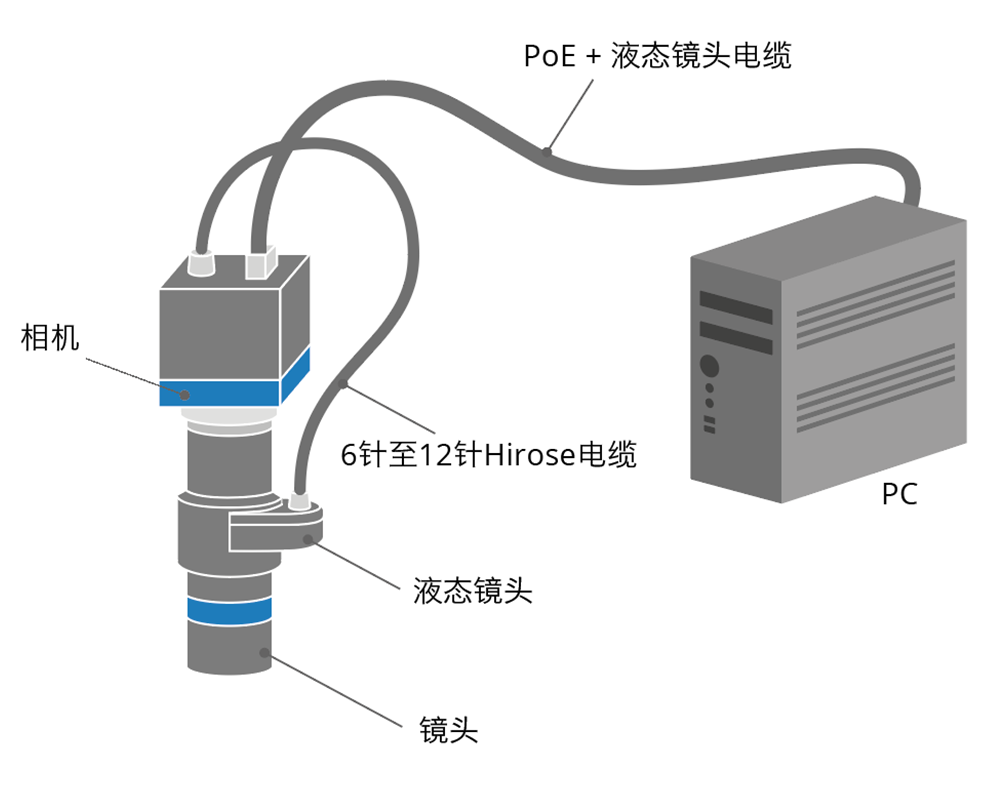

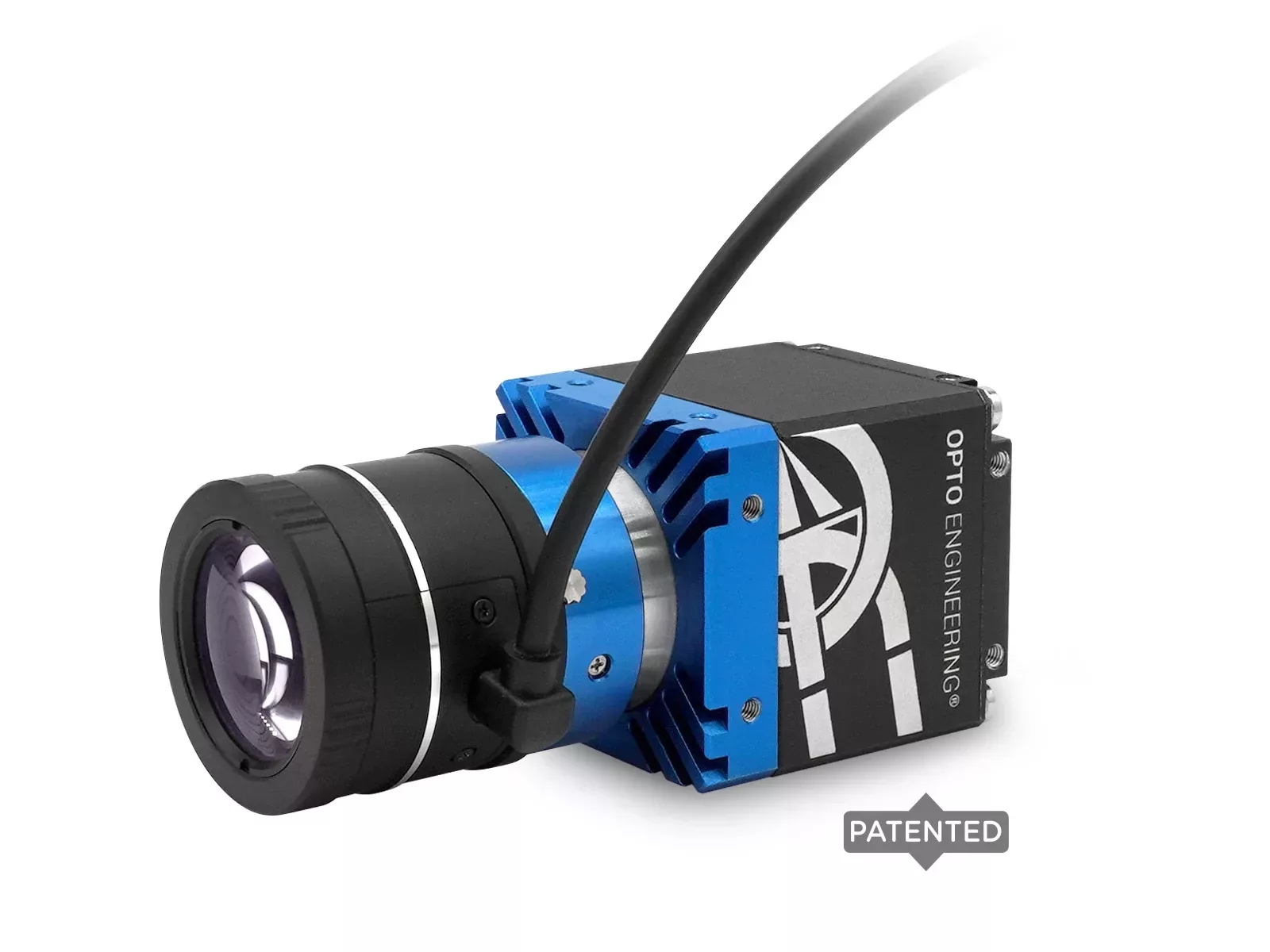

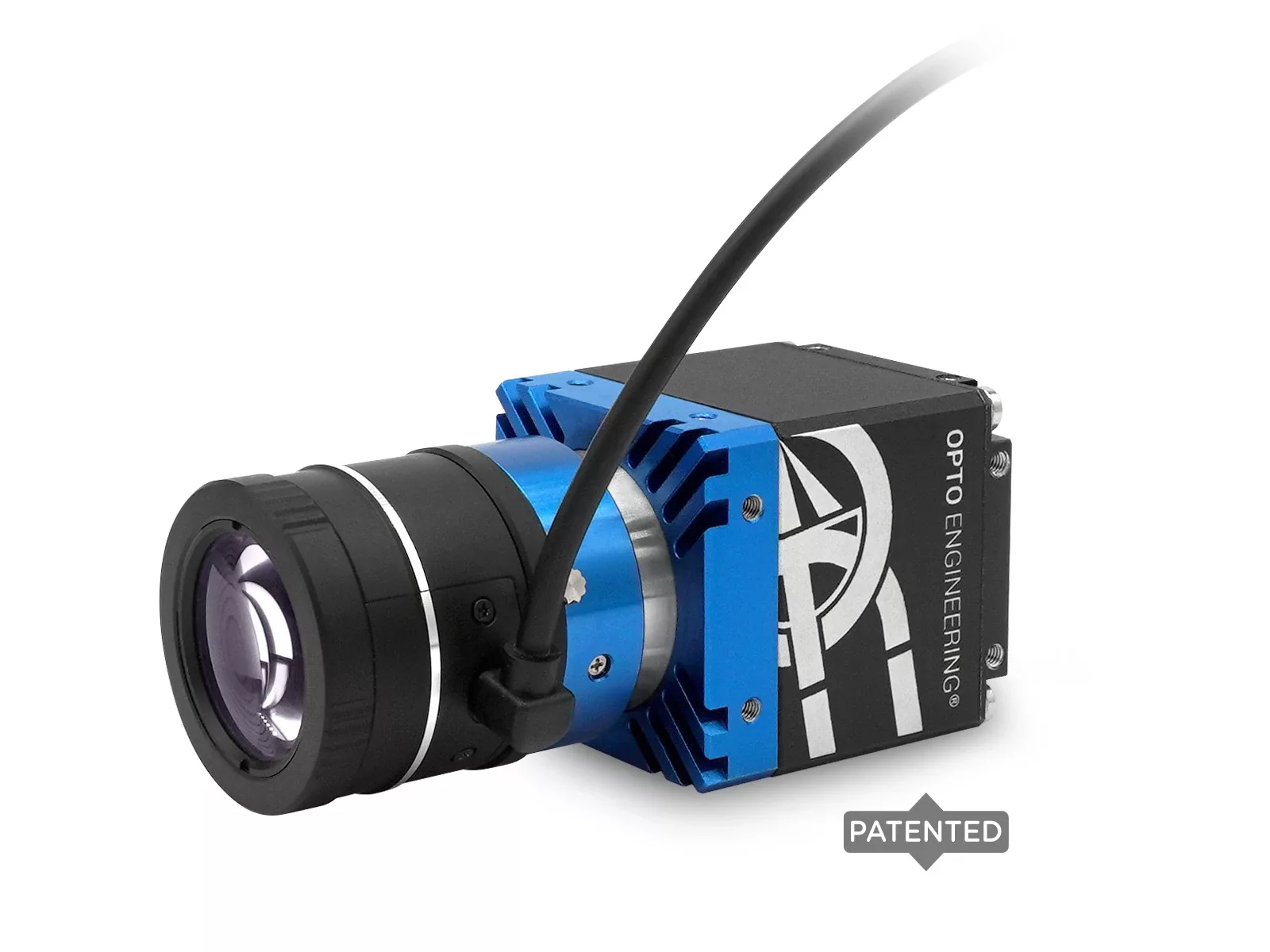

Thanks to the integrated control of the liquid lens, ITALA G.EL cameras allow you to greatly simplify your vision system. As shown in the image below, in fact, you can avoid an external driver and two cables (that of the liquid lens and that of the driver) by using a single custom cable that connects the camera to both the liquid lens and the computer.

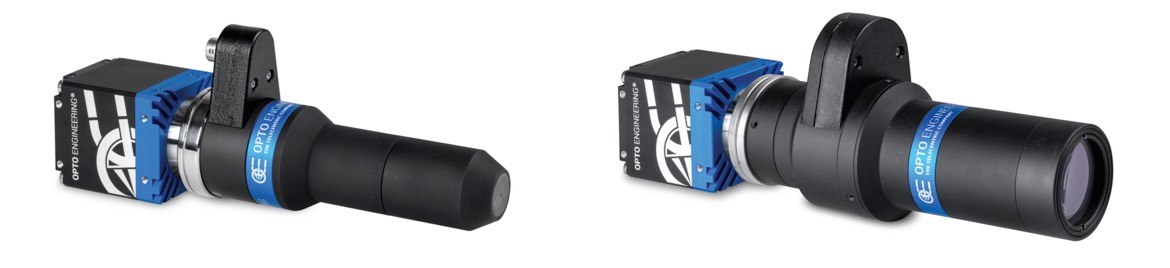

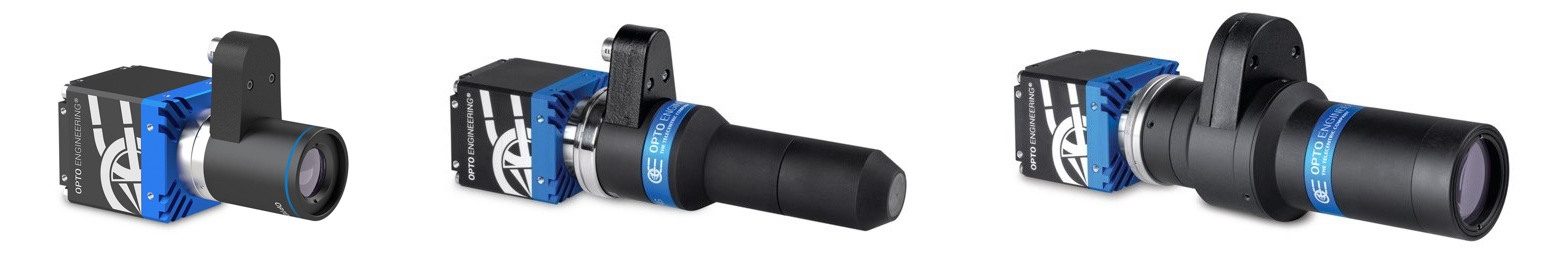

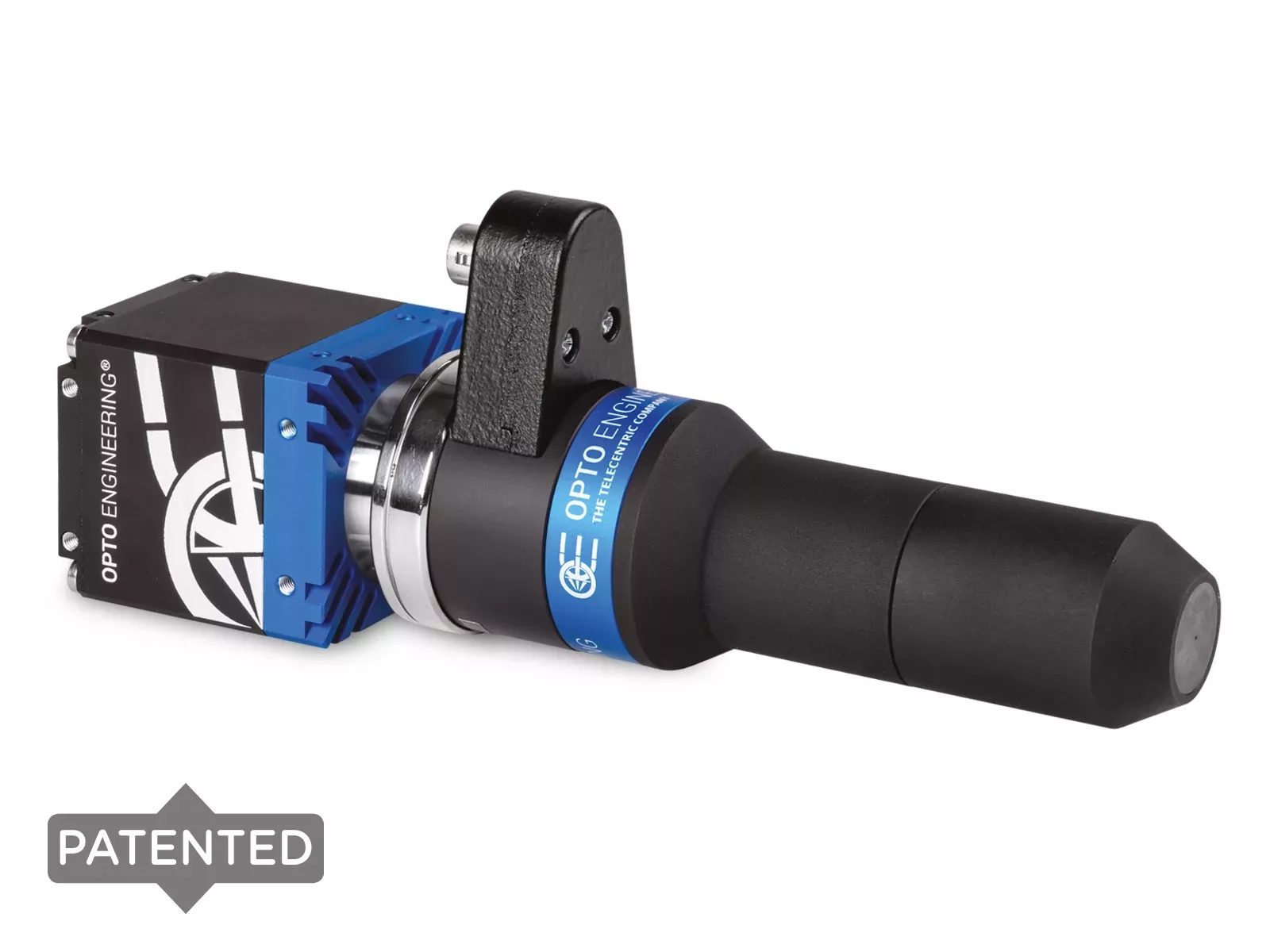

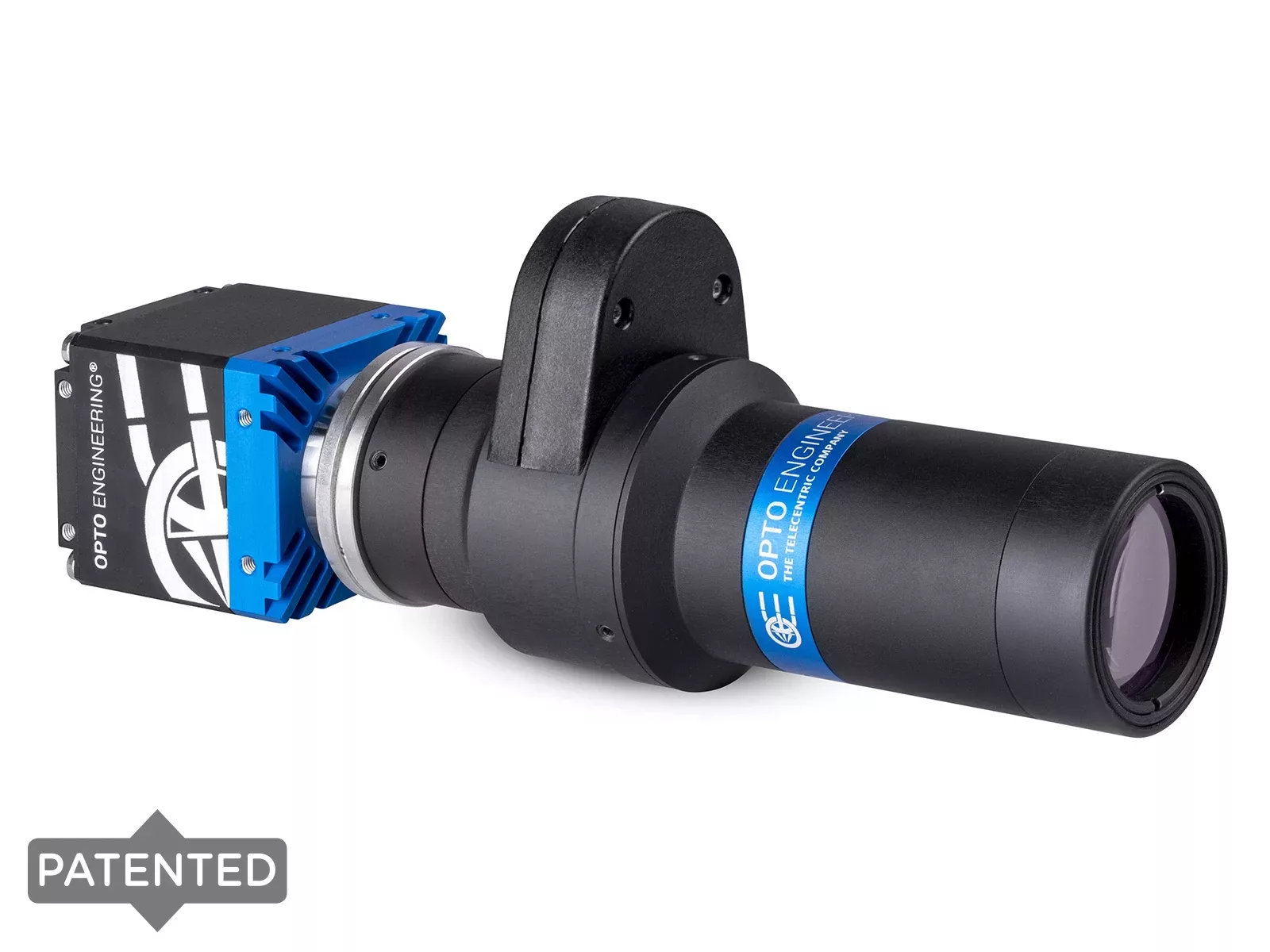

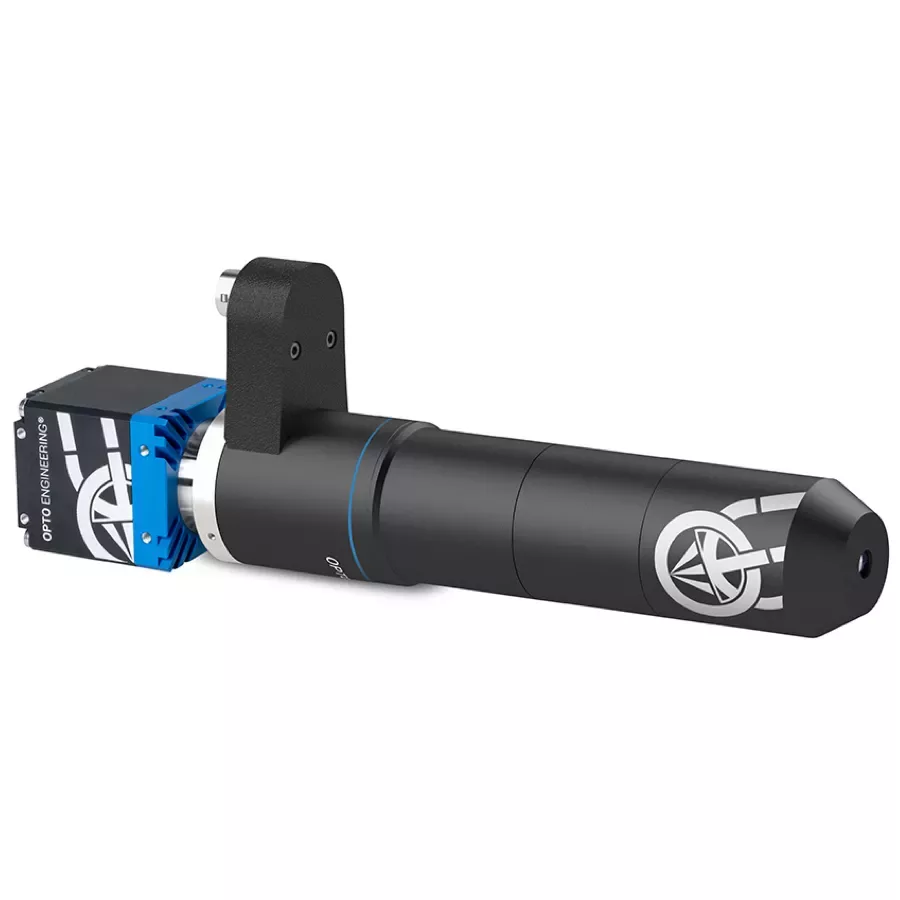

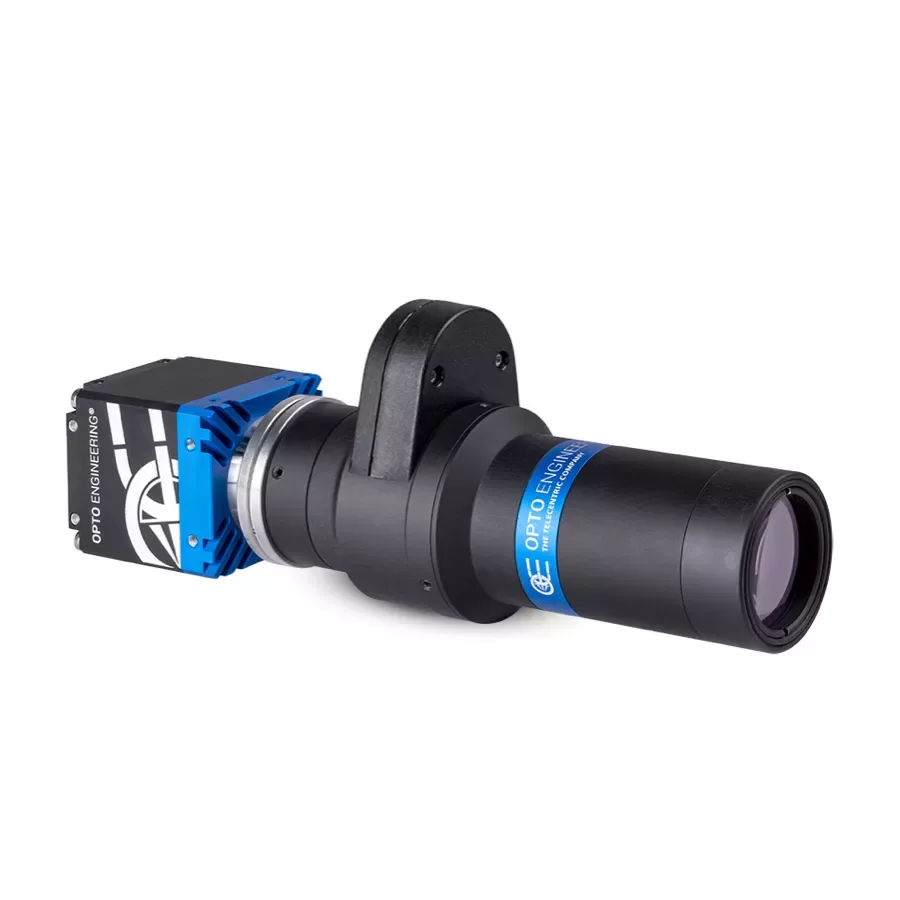

ITALA G.EL are ideal in combination with many optics that integrate liquid lens technology such as the PCHI023-AF (left) or those of the TCEL series (right).

传感器规格 相机规格 连接性和电气规格 机械规格
产品型号 百万像素 分辨率 传感器格式 像素大小 传感器型号 传感器类型 快门 色度 帧率 数据接口 电源供应 接口
(μm) (fps) (V)
ITA32-GM-10C-EL 3.2 2064 x 1544 1/1.8" 3.45 IMX265 CMOS Global Mono 37.3 1 GigE 12-24, PoE (IEEE 802.3af class 2) C
购买
ITA32-GC-10C-EL 3.2 2064 x 1544 1/1.8" 3.45 IMX265 CMOS Global Color 12.4 1 GigE 12-24, PoE (IEEE 802.3af class 2) C
购买
ITA50-GM-10C-EL 5.0 2464 x 2056 2/3" 3.45 IMX264 CMOS Global Mono 23.4 1 GigE 12-24, PoE (IEEE 802.3af class 2) C
购买
ITA50-GC-10C-EL 5.0 2464 x 2056 2/3" 3.45 IMX264 CMOS Global Color 7.8 1 GigE 12-24, PoE (IEEE 802.3af class 2) C
购买
ITA89-GM-10C-EL 8.9 4112 x 2176 1" 3.45 IMX267 CMOS Global Mono 13.3 1 GigE 12-24, PoE (IEEE 802.3af class 2) C
购买
ITA89-GC-10C-EL 8.9 4112 x 2176 1" 3.45 IMX267 CMOS Global Color 4.4 1 GigE 12-24, PoE (IEEE 802.3af class 2) C
ITA120-GM-10C-EL 12.3 4112 x 3008 1.1" 3.45 IMX304 CMOS Global Mono 9.6 1 GigE 12-24, PoE (IEEE 802.3af class 2) C
购买
ITA120-GC-10C-EL 12.3 4112 x 3008 1.1" 3.45 IMX304 CMOS Global Color 3.2 1 GigE 12-24, PoE (IEEE 802.3af class 2) C
购买

最后更新: 22 9月 2022

展开表格

注释

  1. 在24V电源和液体透镜连接到相机的情况下进行测量。
  2. 将在预产期后进行测量。

技术文档

ITALA User Manual

软件

ITALA SDK (Windows_x64) v0.1.2_beta

固件

ITALA Firmware v1.1.5

Itala SDK

Key features

Firmware

Itala SDK

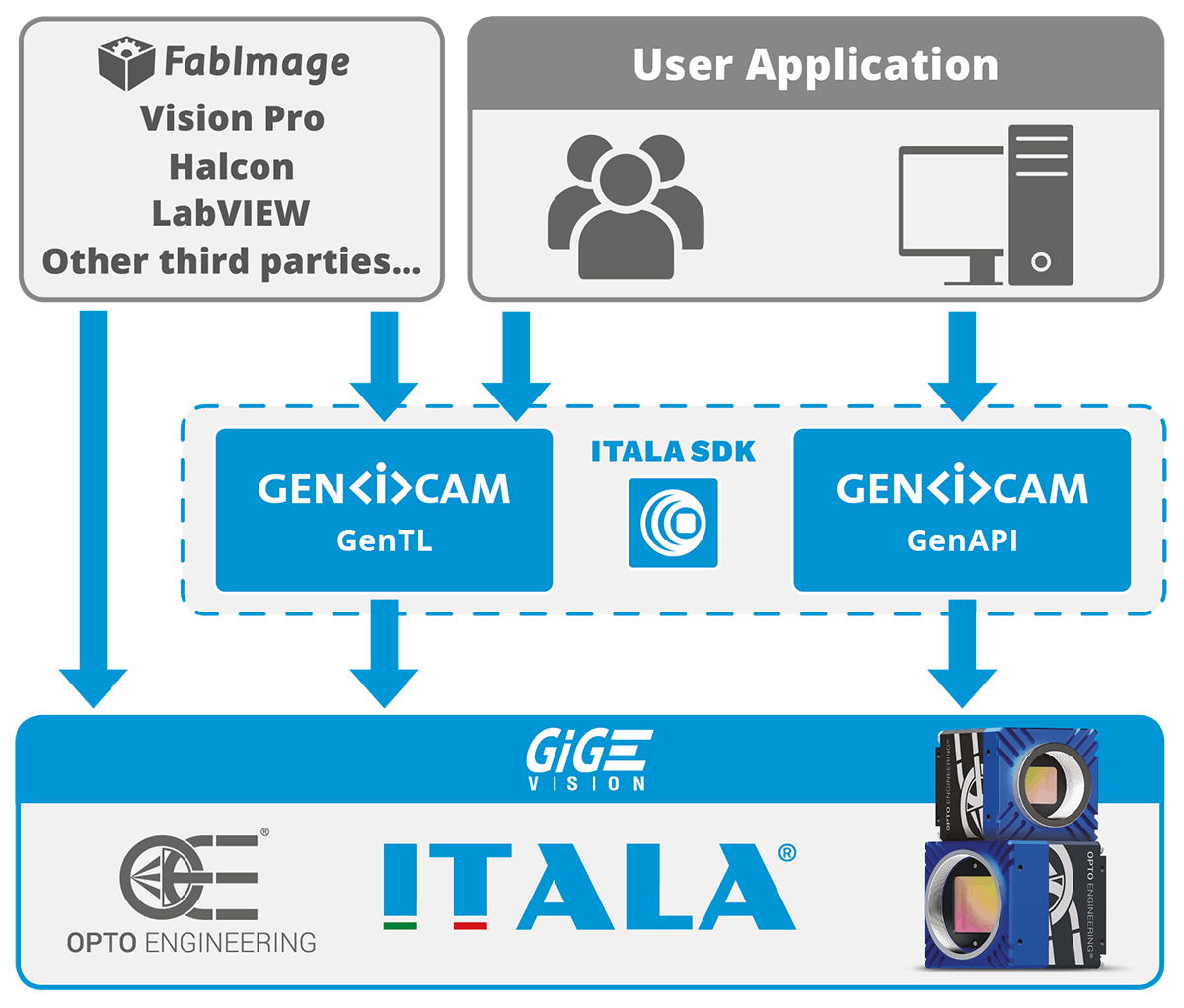

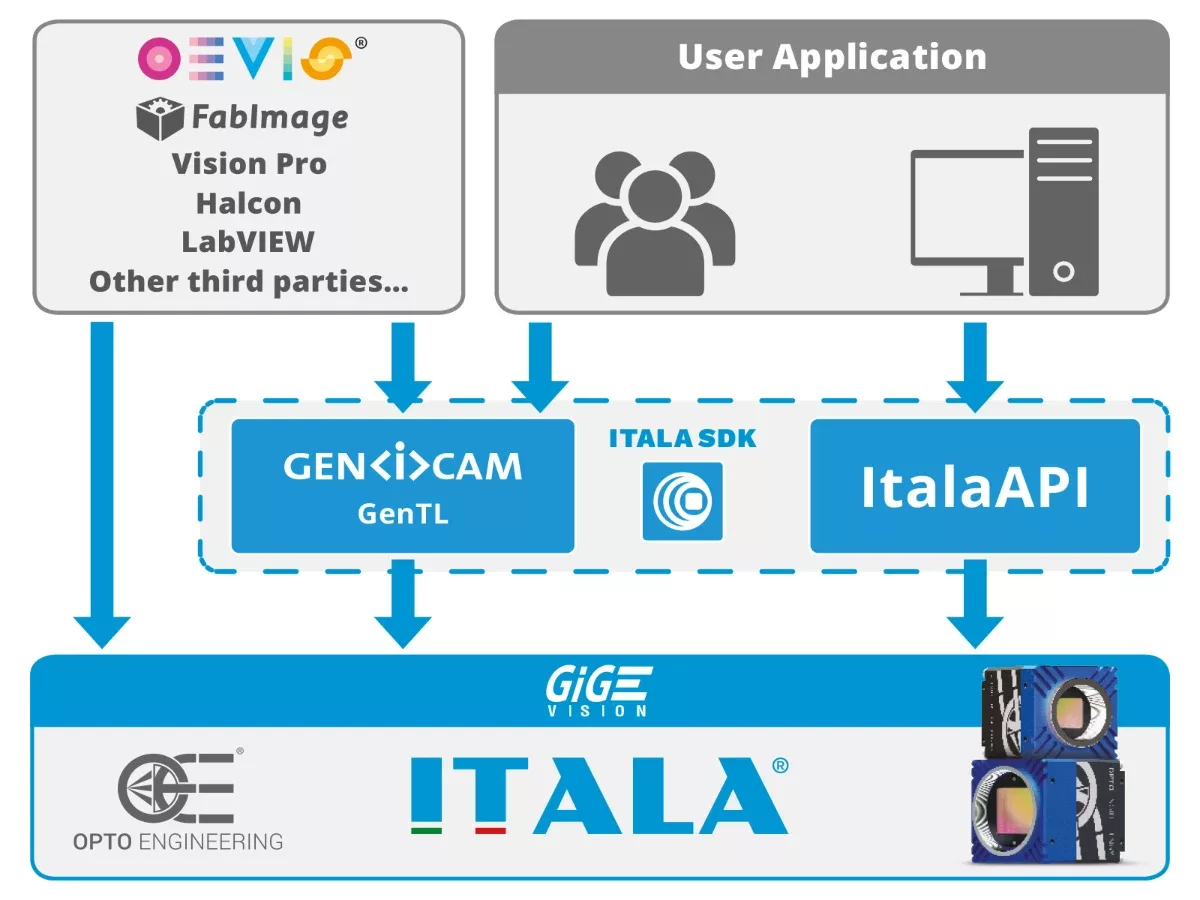

The ITALA SDK (Software Development Kit) is a robust and easy-to-use C++ API designed from scratch to support all Opto Engineering GigE Vision cameras. The compliancy to the GenICam standard grants easy and precise configuration and control of cameras thanks to GenTL. Moreover, the ITALA SDK features up to date SFNC nomenclature and sup- ports event interface to create deterministic camera operation and chunk data to provide meta-data on the acquisition

Key features

  • Robust, easy to use C++ API
  • Extensive documentation with practical code examples showing common and advanced use cases
  • Standardized camera control via familiar GenApi implementation
  • Up-to-date SFNC feature names
  • Event interface and chunk data support
  • Utilities for camera network configuration and firmware updates
  • NDIS filter driver improves streaming stability and CPU usage

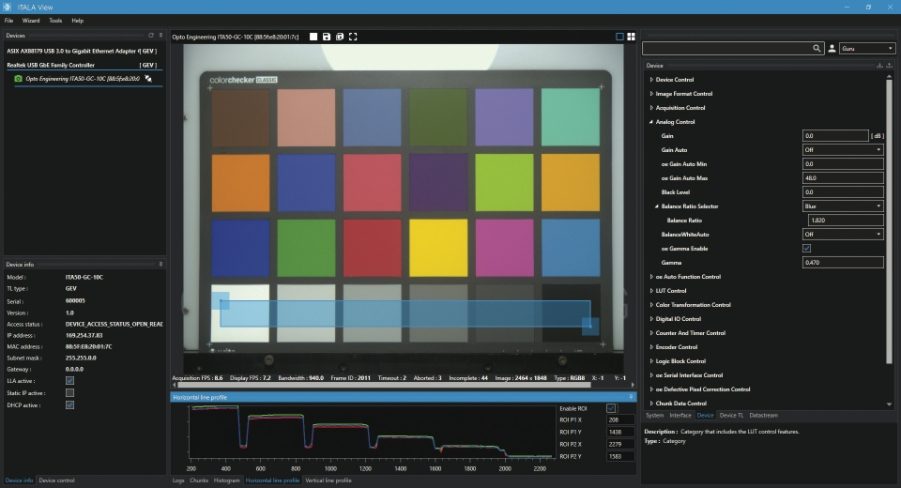

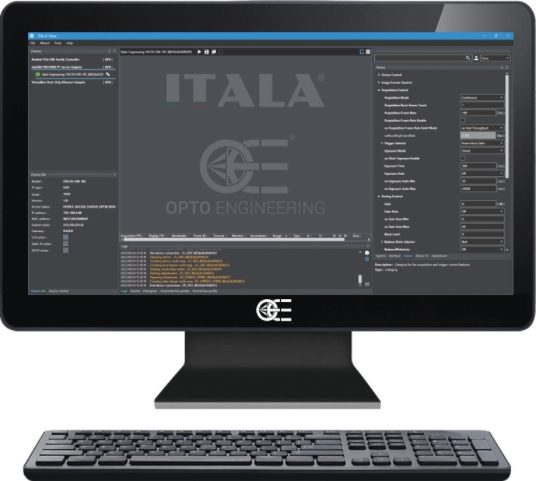

  • Fully featured GUI viewer for camera control, streaming and monitoring
  • Camera settings download from device to file and vice versa

Firmware

Furthermore, our cameras’ firmware represents the industry’s state-of-the-art by providing a full range of functions:

  • Burst Acquisition
  • Chunk data
  • Debayering
  • White balance
  • Color correction (matrix)
  • Auto-exposure
  • Auto-gain

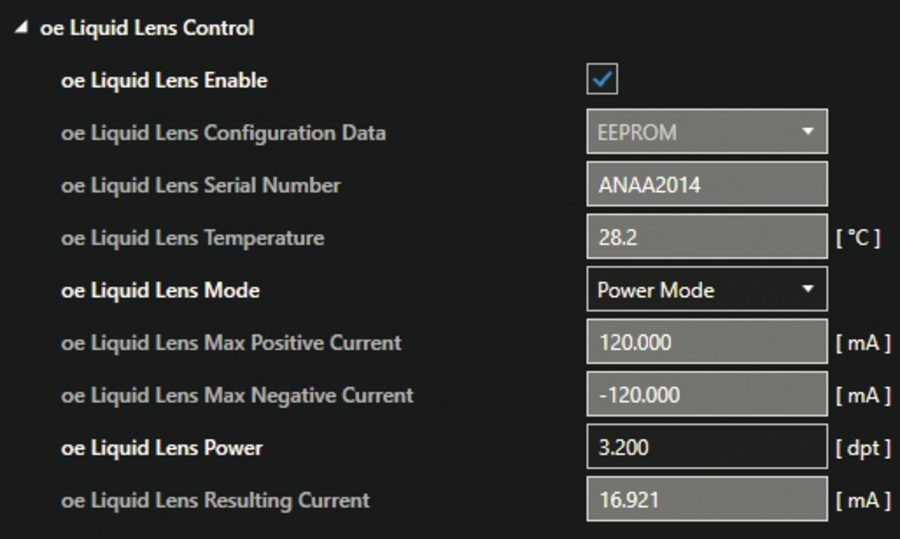

Our ITALA G.EL series allows direct control of liquid lenses without the need for a dedicated external controller. You can conveniently access this function via the GenICam feature tree.
