ITALA G series
概述
模型
Software
下载
相关的
联系我们
New
传感器格式
1/1.8″ - APS-C
Resolution
3.2 - 31.5 MP

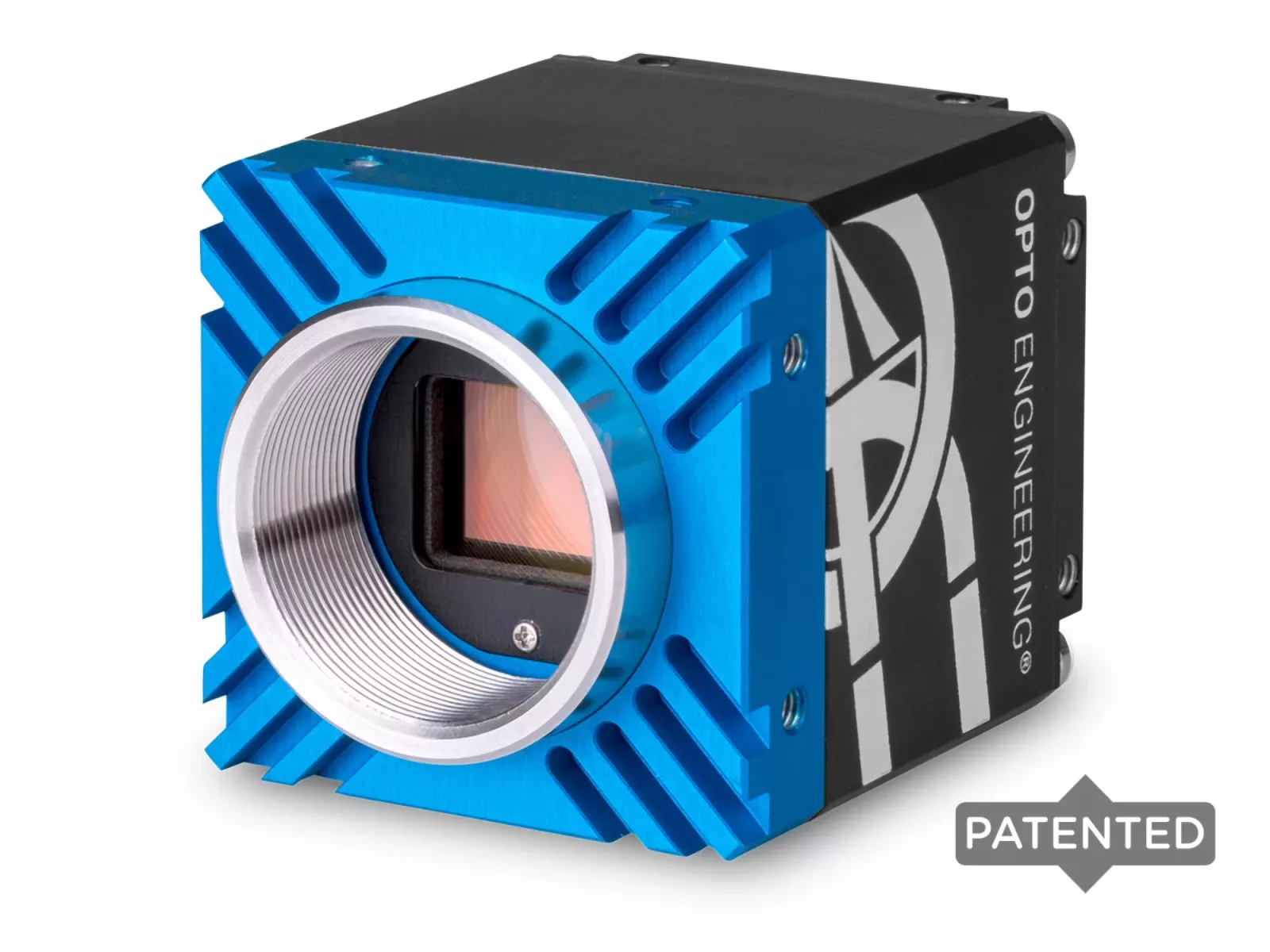

ITALA G is a series of GigE Vision industrial cameras designed and manufactured in Italy by Opto Engineering®. The ITALA G series features robust and reliable industrial cameras with excellent quality-to-price ratio and suitable for any imaging application.

核心优势

Cameras designed and manufactured in Italy by Opto Engineering®.

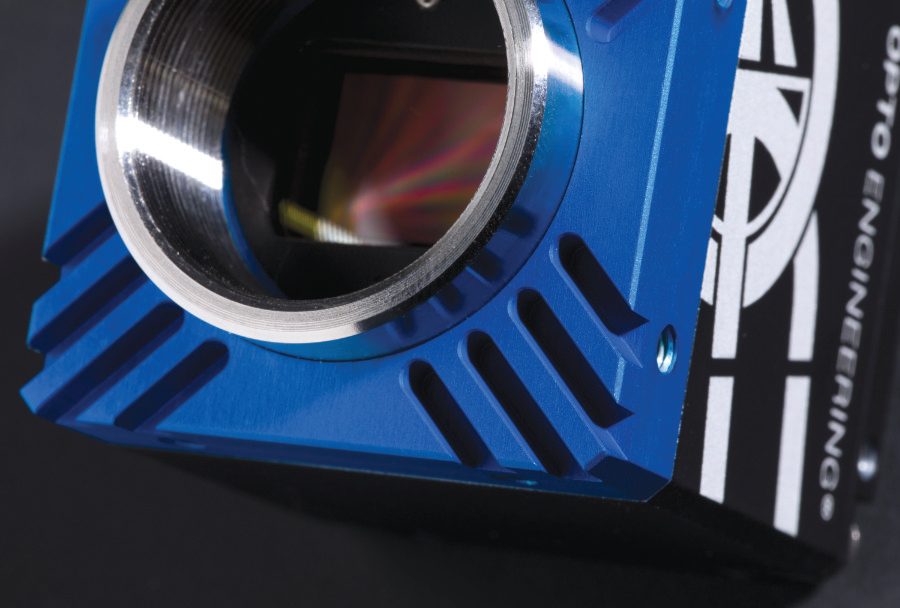

  • Aluminum body & steel lens mount.
  • Shock & Vibration certified.
  • Wide temperature range.

  • Large on-board image buffer
    Never miss a frame and take advantage of burst mode acquisition.
  • High performance FPGA
    Additional on-board processing functions can be easily implemented.

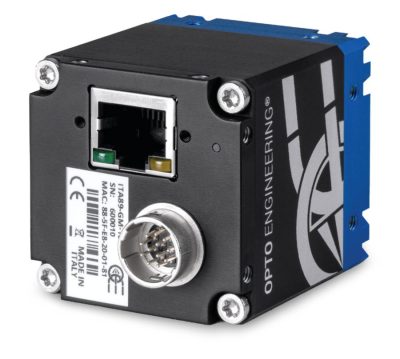

Isolated PoE supply
Simplified cable harness with data and power over a single cable.

Broad Range of I/Os
Industry standard Hirose 12 pin connector for a broad range of I/Os and special functions.

Serial Communication
Combo RS232/485 transceiver for maximum flexibility.

  • A 5-years warranty
  • Dedicated support for the integration directly from the manufacturer
  • Fast replacement service with shipment from Italy in max 48h

质量保证

Complete electronic testing
Complete electronic testing

All the features of our cameras are check to ensure perfect operation.

Burn-in test
Burn-in test

Each camera undergoes severe testing to avoid possible early failures.

Sensor alignment
Sensor alignment

We check the sensor alignment of each camera to ensure maximum performance.

EMVA 1288 test
EMVA 1288 test

Each camera is tested according to the EMVA1288 standard.

服务

传感器规格 相机规格 连接性和电气规格 机械规格
产品型号 百万像素 分辨率 传感器格式 像素大小 传感器型号 传感器类型 快门 色度 帧率 数据接口 电源供应 接口
(μm) (fps) (V)
ITA32-GM-10C 3.2 2064 x 1544 1/1.8" 3.45 IMX265 CMOS Global Mono 37.3 1 GigE 12-24, PoE (IEEE 802.3af class 2) C
购买
ITA32-GC-10C 3.2 2064 x 1544 1/1.8" 3.45 IMX265 CMOS Global Color 12.4 1 GigE 12-24, PoE (IEEE 802.3af class 2) C
购买
ITA50-GM-10C 5.0 2464 x 2056 2/3" 3.45 IMX264 CMOS Global Mono 23.4 1 GigE 12-24, PoE (IEEE 802.3af class 2) C
购买
ITA50-GC-10C 5.0 2464 x 2056 2/3" 3.45 IMX264 CMOS Global Color 7.8 1 GigE 12-24, PoE (IEEE 802.3af class 2) C
购买
ITA89-GM-10C 8.9 4112 x 2176 1" 3.45 IMX267 CMOS Global Mono 13.3 1 GigE 12-24, PoE (IEEE 802.3af class 2) C
购买
ITA89-GC-10C 8.9 4112 x 2176 1" 3.45 IMX267 CMOS Global Color 4.4 1 GigE 12-24, PoE (IEEE 802.3af class 2) C
购买
ITA120-GM-10C 12.3 4112 x 3008 1.1" 3.45 IMX304 CMOS Global Mono 9.6 1 GigE 12-24, PoE (IEEE 802.3af class 2) C
购买
ITA120-GC-10C 12.3 4112 x 3008 1.1" 3.45 IMX304 CMOS Global Color 3.2 1 GigE 12-24, PoE (IEEE 802.3af class 2) C
购买
ITA168-GM-10J 16.8 5472 x 3084 4/3" 3.45 IMX387 CMOS Global Mono 7.0 1 GigE 12-24, PoE (IEEE 802.3af class 2) M42x1 FD 12
购买
ITA168-GC-10J 16.8 5472 x 3084 4/3" 3.45 IMX387 CMOS Global Color 2.3 1 GigE 12-24, PoE (IEEE 802.3af class 2) M42x1 FD 12
购买
ITA196-GM-10J 19.6 4432 x 4436 4/3" 3.45 IMX367 CMOS Global Mono 6.0 1 GigE 12-24, PoE (IEEE 802.3af class 2) M42x1 FD 12
购买
ITA196-GC-10J 19.6 4432 x 4436 4/3" 3.45 IMX367 CMOS Global Color 2.0 1 GigE 12-24, PoE (IEEE 802.3af class 2) M42x1 FD 12
购买
ITA315-GM-10J 31.5 6480 x 4860 APS-C 3.45 IMX342 CMOS Global Mono 3.8 1 GigE 12-24, PoE (IEEE 802.3af class 2) M42x1 FD 12
购买
ITA315-GC-10J 31.5 6480 x 4860 APS-C 3.45 IMX342 CMOS Global Color 1.3 1 GigE 12-24, PoE (IEEE 802.3af class 2) M42x1 FD 12
购买

最后更新: 22 9月 2022

展开表格

注释

  1. 用24V电源测量。
  2. 将在预产期后进行测量。

技术文档

ITALA User Manual

软件

ITALA SDK (Windows_x64) v0.1.2_beta

固件

ITALA Firmware v1.1.5

Itala SDK

Key features

Firmware

Itala SDK

The ITALA SDK (Software Development Kit) is a robust and easy-to-use C++ API designed from scratch to support all Opto Engineering GigE Vision cameras. The compliancy to the GenICam standard grants easy and precise configuration and control of cameras thanks to GenTL. Moreover, the ITALA SDK features up to date SFNC nomenclature and sup- ports event interface to create deterministic camera operation and chunk data to provide meta-data on the acquisition

Key features

  • Robust, easy to use C++ API
  • Extensive documentation with practical code examples showing common and advanced use cases
  • Standardized camera control via familiar GenApi implementation
  • Up-to-date SFNC feature names
  • Event interface and chunk data support
  • Utilities for camera network configuration and firmware updates
  • NDIS filter driver improves streaming stability and CPU usage
  • Fully featured GUI viewer for camera control, streaming and monitoring
  • Camera settings download from device to file and vice versa

Firmware

Furthermore, our cameras’ firmware represents the industry’s state-of-the-art by providing a full range of functions:

  • Burst Acquisition
  • Chunk data
  • Debayering
  • White balance

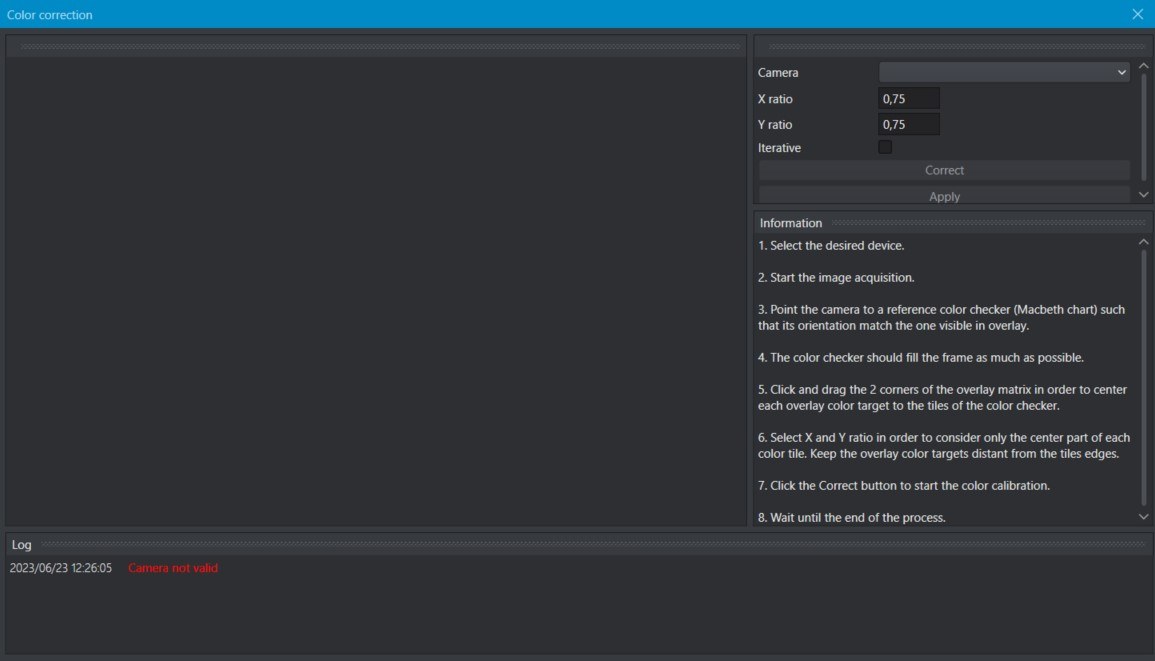

  • Color correction (matrix)
  • Auto-exposure
  • Auto-gain
