LTBRZ3 系列

主页光源 LED光源

LTBRZ3 系列

概述

模型

下载

核心优势

集成恒定电流驱动电子元件
菊花链选件
轻松将多达 6 个光源连接在一起
多种选择
295x25 mm 有效区域
提供有红、白、绿、蓝和红外
5 针 M12 连接器
缩减厚度的紧凑型轻量化设计 (33 mm)

LTBRZ 系列 包含高强度 LED 条形光源，并且集成了恒定电流驱动电子元件，可在各种通用机器视觉应用中用作前照灯或背光灯，包括正面检测（例如零件识别）、检查是否存在大型工件、目测大型工件以及机械手拣选。

每个光源有 12 个高强度 LED，可在工件上提供矩形照明。安装角度可自由设定。

通过菊花链，最多可将六个条形光源连接在一起。这些光源配备 5 针 M12 连接器，非常适合工业自动化环境。LTBRZ 的设计小巧轻便，旨在轻松安装到任何机器视觉系统中。

这些条形光源具有 24V 电源电压，可以通过 0-10V 模拟信号或内置的手动电位计轻松调光。它们以连续或过载驱动/频闪模式运行：可以使用 NPN 或 PNP 频闪触发器控制光源的开/关输入。连续和频闪模式均集成过热保护功能。频闪模式集成了额外的保护功能，可在安全工作范围内限制最大占空比。 LTBRZ 光源配备具有圆形/椭圆形发射角的不同镜头，或用于背光源应用的特殊漫射片。可选配偏光片（水平或垂直)。

发现更多

Learn

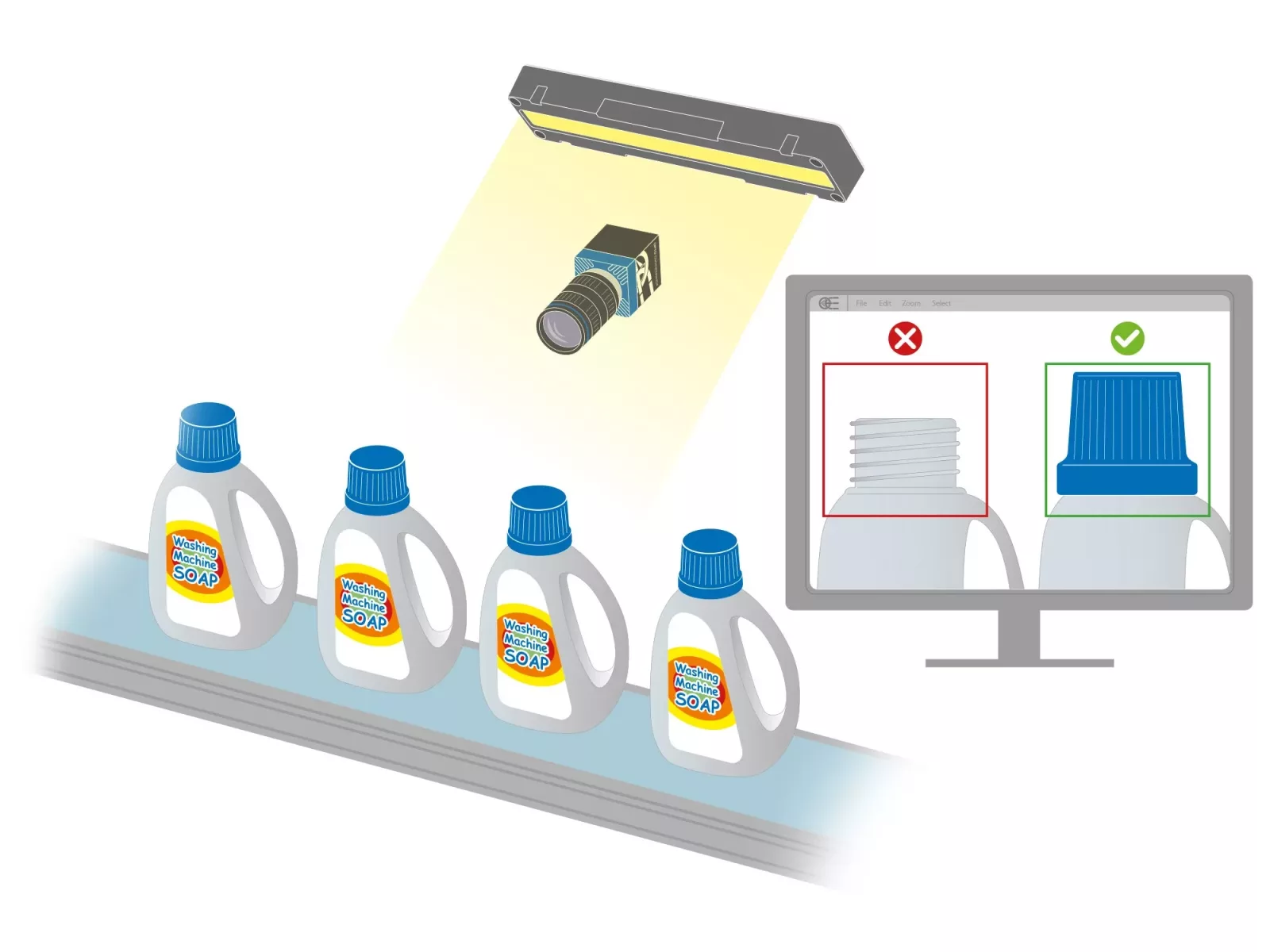

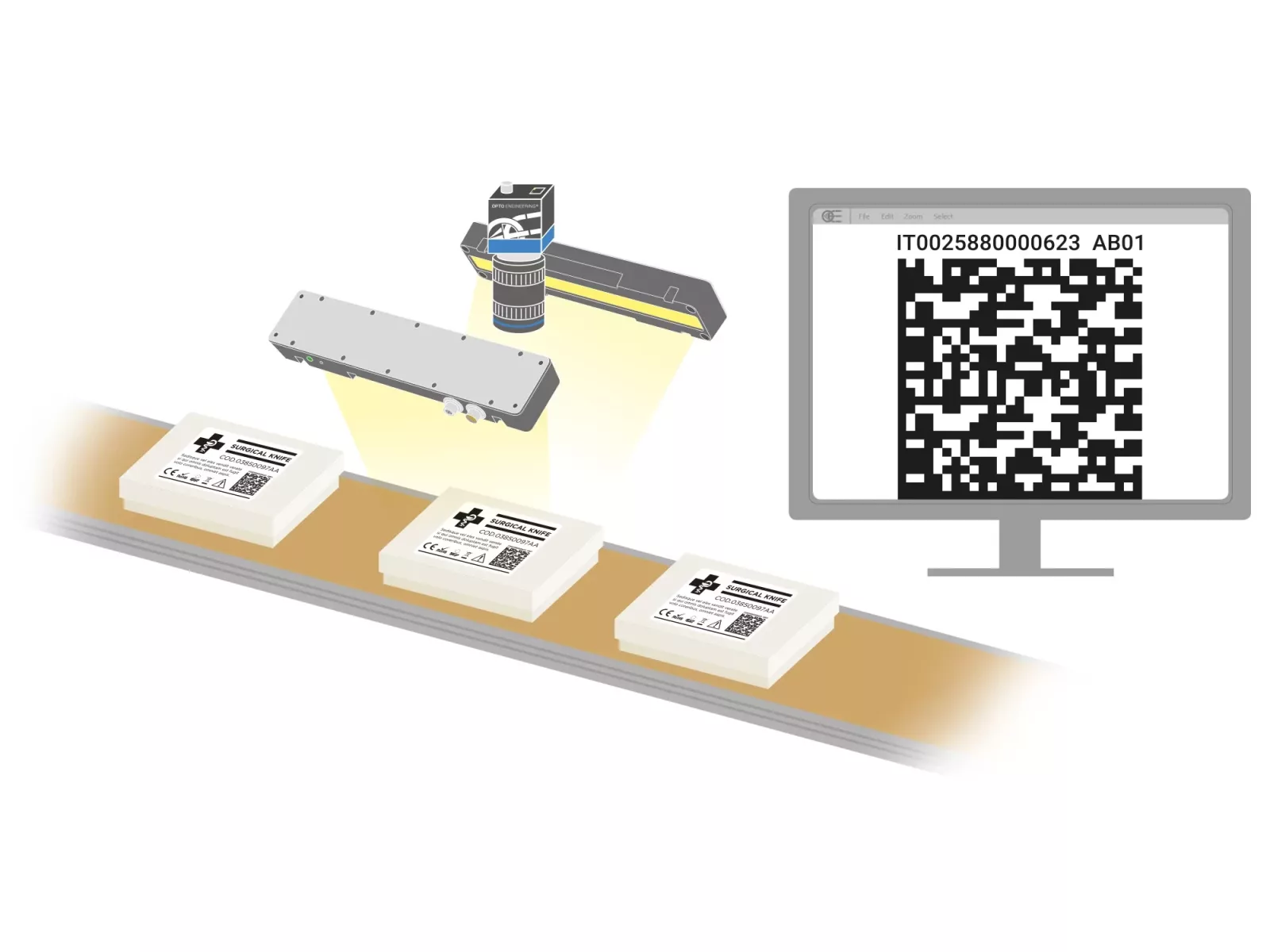

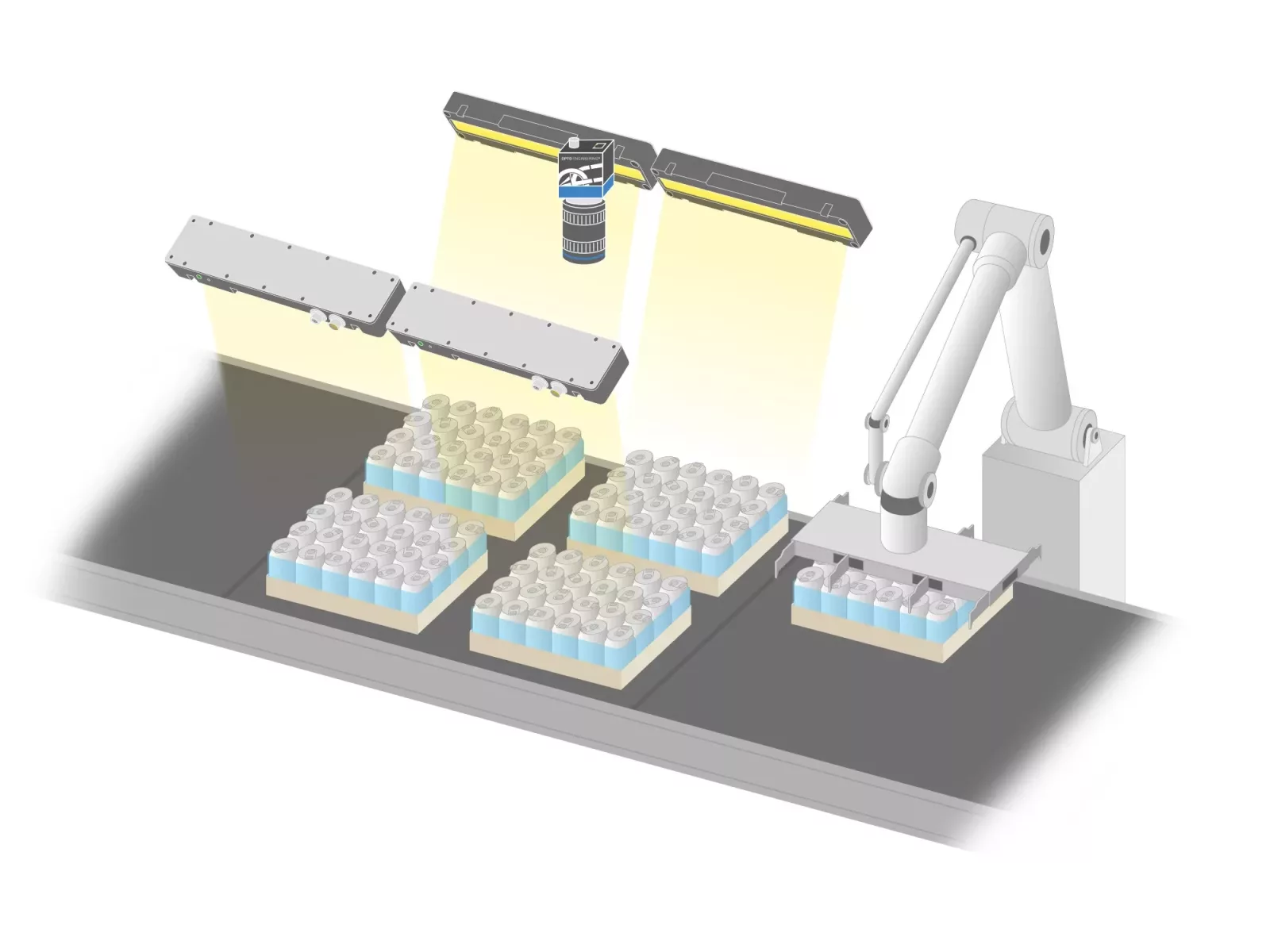

基本用途

Online tools

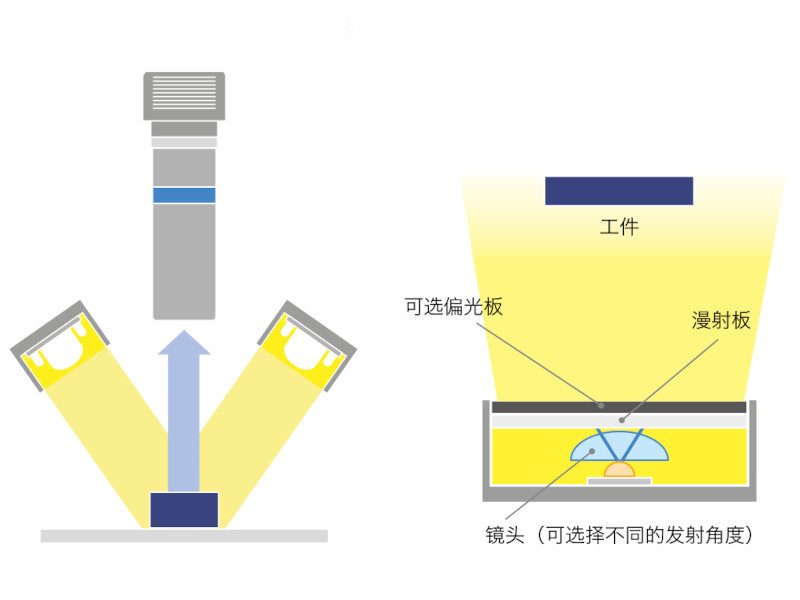

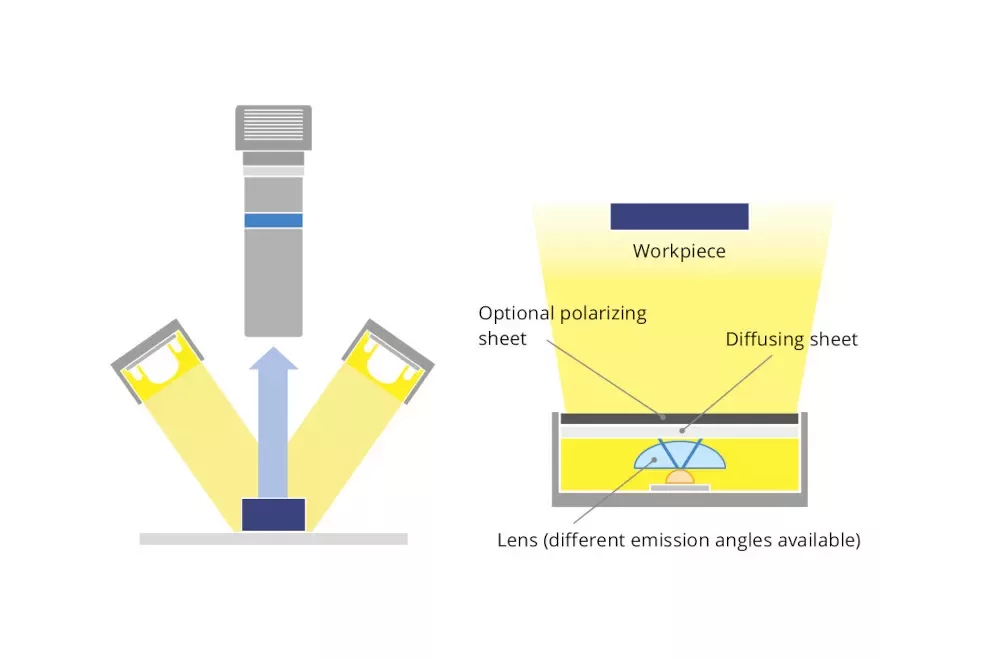

照明结构

请稍等

无法处理您的请求

返回型号

	照明规格							电气规格						机械规格
产品型号	照明区域宽度	照明区域高度	发射角度	LED 数量	光源颜色，峰值波长	漫反射板	偏振膜	电源电压	峰值功耗	操作模式	菊花链	最大连续电流	最大脉冲电流	宽度	高度	厚度

	(mm)	(mm)	(deg)					(V)	(W)			(A)	(A)	(mm)	(mm)	(mm)
								2
选择2个或更多型号来比较规格开始比较清除所选内容
LTBRZ3-C-R-10	295	25	10	12	red, 630 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-10-DC	295	25	10	12	red, 630 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-R-10-PH	295	25	10	12	red, 630 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-10-PH-DC	295	25	10	12	red, 630 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-R-10-PV	295	25	10	12	red, 630 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-10-PV-DC	295	25	10	12	red, 630 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-R-20	295	25	20	12	red, 630 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-20-DC	295	25	20	12	red, 630 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-R-20-PH	295	25	20	12	red, 630 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-20-PH-DC	295	25	20	12	red, 630 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-R-20-PV	295	25	20	12	red, 630 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-20-PV-DC	295	25	20	12	red, 630 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-R-30	295	25	30	12	red, 630 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-30-DC	295	25	30	12	red, 630 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-R-30-PH	295	25	30	12	red, 630 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-30-PH-DC	295	25	30	12	red, 630 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-R-30-PV	295	25	30	12	red, 630 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-30-PV-DC	295	25	30	12	red, 630 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-R-50	295	25	50	12	red, 630 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-50-DC	295	25	50	12	red, 630 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-R-50-PH	295	25	50	12	red, 630 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-50-PH-DC	295	25	50	12	red, 630 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-R-50-PV	295	25	50	12	red, 630 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-50-PV-DC	295	25	50	12	red, 630 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-R-EL	295	25	30x15 elliptical	12	red, 630 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-EL-DC	295	25	30x15 elliptical	12	red, 630 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-R-EL-PH	295	25	30x15 elliptical	12	red, 630 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-EL-PH-DC	295	25	30x15 elliptical	12	red, 630 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-R-EL-PV	295	25	30x15 elliptical	12	red, 630 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-EL-PV-DC	295	25	30x15 elliptical	12	red, 630 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-R-BL	295	25	backlight	12	red, 630 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-BL-DC	295	25	backlight	12	red, 630 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-R-BL-PH	295	25	backlight	12	red, 630 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-BL-PH-DC	295	25	backlight	12	red, 630 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-R-BL-PV	295	25	backlight	12	red, 630 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-R-BL-PV-DC	295	25	backlight	12	red, 630 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-10	295	25	10	12	green, 530 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-10-DC	295	25	10	12	green, 530 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-10-PH	295	25	10	12	green, 530 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-10-PH-DC	295	25	10	12	green, 530 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-10-PV	295	25	10	12	green, 530 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-10-PV-DC	295	25	10	12	green, 530 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-20	295	25	20	12	green, 530 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-20-DC	295	25	20	12	green, 530 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-20-PH	295	25	20	12	green, 530 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-20-PH-DC	295	25	20	12	green, 530 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-20-PV	295	25	20	12	green, 530 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-20-PV-DC	295	25	20	12	green, 530 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-30	295	25	30	12	green, 530 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-30-DC	295	25	30	12	green, 530 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-30-PH	295	25	30	12	green, 530 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-30-PH-DC	295	25	30	12	green, 530 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-30-PV	295	25	30	12	green, 530 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-30-PV-DC	295	25	30	12	green, 530 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-50	295	25	50	12	green, 530 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-50-DC	295	25	50	12	green, 530 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-50-PH	295	25	50	12	green, 530 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-50-PH-DC	295	25	50	12	green, 530 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-50-PV	295	25	50	12	green, 530 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-50-PV-DC	295	25	50	12	green, 530 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-EL	295	25	30x15 elliptical	12	green, 530 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-EL-DC	295	25	30x15 elliptical	12	green, 530 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-EL-PH	295	25	30x15 elliptical	12	green, 530 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-EL-PH-DC	295	25	30x15 elliptical	12	green, 530 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-EL-PV	295	25	30x15 elliptical	12	green, 530 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-EL-PV-DC	295	25	30x15 elliptical	12	green, 530 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-BL	295	25	backlight	12	green, 530 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-BL-DC	295	25	backlight	12	green, 530 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-BL-PH	295	25	backlight	12	green, 530 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-BL-PH-DC	295	25	backlight	12	green, 530 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-G-BL-PV	295	25	backlight	12	green, 530 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-G-BL-PV-DC	295	25	backlight	12	green, 530 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-10	295	25	10	12	blue, 470 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-10-DC	295	25	10	12	blue, 470 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-10-PH	295	25	10	12	blue, 470 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-10-PH-DC	295	25	10	12	blue, 470 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-10-PV	295	25	10	12	blue, 470 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-10-PV-DC	295	25	10	12	blue, 470 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-20	295	25	20	12	blue, 470 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-20-DC	295	25	20	12	blue, 470 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-20-PH	295	25	20	12	blue, 470 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-20-PH-DC	295	25	20	12	blue, 470 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-20-PV	295	25	20	12	blue, 470 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-20-PV-DC	295	25	20	12	blue, 470 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-30	295	25	30	12	blue, 470 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-30-DC	295	25	30	12	blue, 470 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-30-PH	295	25	30	12	blue, 470 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-30-PH-DC	295	25	30	12	blue, 470 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-30-PV	295	25	30	12	blue, 470 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-30-PV-DC	295	25	30	12	blue, 470 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-50	295	25	50	12	blue, 470 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-50-DC	295	25	50	12	blue, 470 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-50-PH	295	25	50	12	blue, 470 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-50-PH-DC	295	25	50	12	blue, 470 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-50-PV	295	25	50	12	blue, 470 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-50-PV-DC	295	25	50	12	blue, 470 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-EL	295	25	30x15 elliptical	12	blue, 470 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-EL-DC	295	25	30x15 elliptical	12	blue, 470 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-EL-PH	295	25	30x15 elliptical	12	blue, 470 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-EL-PH-DC	295	25	30x15 elliptical	12	blue, 470 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-EL-PV	295	25	30x15 elliptical	12	blue, 470 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-EL-PV-DC	295	25	30x15 elliptical	12	blue, 470 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-BL	295	25	backlight	12	blue, 470 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-BL-DC	295	25	backlight	12	blue, 470 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-BL-PH	295	25	backlight	12	blue, 470 nm	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-BL-PH-DC	295	25	backlight	12	blue, 470 nm	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-B-BL-PV	295	25	backlight	12	blue, 470 nm	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-B-BL-PV-DC	295	25	backlight	12	blue, 470 nm	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-10	295	25	10	12	white, 6500 K	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-10-DC	295	25	10	12	white, 6500 K	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-10-PH	295	25	10	12	white, 6500 K	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-10-PH-DC	295	25	10	12	white, 6500 K	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-10-PV	295	25	10	12	white, 6500 K	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-10-PV-DC	295	25	10	12	white, 6500 K	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-20	295	25	20	12	white, 6500 K	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-20-DC	295	25	20	12	white, 6500 K	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-20-PH	295	25	20	12	white, 6500 K	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-20-PH-DC	295	25	20	12	white, 6500 K	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-20-PV	295	25	20	12	white, 6500 K	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-20-PV-DC	295	25	20	12	white, 6500 K	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-30	295	25	30	12	white, 6500 K	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-30-DC	295	25	30	12	white, 6500 K	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-30-PH	295	25	30	12	white, 6500 K	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-30-PH-DC	295	25	30	12	white, 6500 K	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-30-PV	295	25	30	12	white, 6500 K	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-30-PV-DC	295	25	30	12	white, 6500 K	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-50	295	25	50	12	white, 6500 K	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-50-DC	295	25	50	12	white, 6500 K	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-50-PH	295	25	50	12	white, 6500 K	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-50-PH-DC	295	25	50	12	white, 6500 K	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-50-PV	295	25	50	12	white, 6500 K	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-50-PV-DC	295	25	50	12	white, 6500 K	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-EL	295	25	30x15 elliptical	12	white, 6500 K	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-EL-DC	295	25	30x15 elliptical	12	white, 6500 K	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-EL-PH	295	25	30x15 elliptical	12	white, 6500 K	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-EL-PH-DC	295	25	30x15 elliptical	12	white, 6500 K	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-EL-PV	295	25	30x15 elliptical	12	white, 6500 K	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-EL-PV-DC	295	25	30x15 elliptical	12	white, 6500 K	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-BL	295	25	backlight	12	white, 6500 K	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-BL-DC	295	25	backlight	12	white, 6500 K	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-BL-PH	295	25	backlight	12	white, 6500 K	yes	horizontal	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-BL-PH-DC	295	25	backlight	12	white, 6500 K	yes	horizontal	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-W-BL-PV	295	25	backlight	12	white, 6500 K	yes	vertical	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-W-BL-PV-DC	295	25	backlight	12	white, 6500 K	yes	vertical	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-IR-10	295	25	10	12	IR, 860 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-IR-10-DC	295	25	10	12	IR, 860 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-IR-20	295	25	20	12	IR, 860 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-IR-20-DC	295	25	20	12	IR, 860 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-IR-30	295	25	30	12	IR, 860 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-IR-30-DC	295	25	30	12	IR, 860 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-IR-50	295	25	50	12	IR, 860 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-IR-50-DC	295	25	50	12	IR, 860 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-IR-EL	295	25	30x15 elliptical	12	IR, 860 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-IR-EL-DC	295	25	30x15 elliptical	12	IR, 860 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-C-IR-BL	295	25	backlight	12	IR, 860 nm	yes	no	24	18	Continuous	no	0.750	-	307	66	33	购买
LTBRZ3-C-IR-BL-DC	295	25	backlight	12	IR, 860 nm	yes	no	24	18	Continuous	yes	0.750	-	307	66	33	购买
LTBRZ3-P-R-10	295	25	10	12	red, 630 nm	yes	no	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-10-DC	295	25	10	12	red, 630 nm	yes	no	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-10-PH	295	25	10	12	red, 630 nm	yes	horizontal	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-10-PH-DC	295	25	10	12	red, 630 nm	yes	horizontal	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-10-PV	295	25	10	12	red, 630 nm	yes	vertical	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-10-PV-DC	295	25	10	12	red, 630 nm	yes	vertical	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-20	295	25	20	12	red, 630 nm	yes	no	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-20-DC	295	25	20	12	red, 630 nm	yes	no	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-20-PH	295	25	20	12	red, 630 nm	yes	horizontal	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-20-PH-DC	295	25	20	12	red, 630 nm	yes	horizontal	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-20-PV	295	25	20	12	red, 630 nm	yes	vertical	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-20-PV-DC	295	25	20	12	red, 630 nm	yes	vertical	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-30	295	25	30	12	red, 630 nm	yes	no	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-30-DC	295	25	30	12	red, 630 nm	yes	no	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-30-PH	295	25	30	12	red, 630 nm	yes	horizontal	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-30-PH-DC	295	25	30	12	red, 630 nm	yes	horizontal	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-30-PV	295	25	30	12	red, 630 nm	yes	vertical	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-30-PV-DC	295	25	30	12	red, 630 nm	yes	vertical	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-50	295	25	50	12	red, 630 nm	yes	no	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-50-DC	295	25	50	12	red, 630 nm	yes	no	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-50-PH	295	25	50	12	red, 630 nm	yes	horizontal	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-50-PH-DC	295	25	50	12	red, 630 nm	yes	horizontal	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-50-PV	295	25	50	12	red, 630 nm	yes	vertical	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-50-PV-DC	295	25	50	12	red, 630 nm	yes	vertical	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-EL	295	25	30x15 elliptical	12	red, 630 nm	yes	no	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-EL-DC	295	25	30x15 elliptical	12	red, 630 nm	yes	no	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-EL-PH	295	25	30x15 elliptical	12	red, 630 nm	yes	horizontal	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-EL-PH-DC	295	25	30x15 elliptical	12	red, 630 nm	yes	horizontal	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-EL-PV	295	25	30x15 elliptical	12	red, 630 nm	yes	vertical	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-EL-PV-DC	295	25	30x15 elliptical	12	red, 630 nm	yes	vertical	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-BL	295	25	backlight	12	red, 630 nm	yes	no	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-BL-DC	295	25	backlight	12	red, 630 nm	yes	no	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-BL-PH	295	25	backlight	12	red, 630 nm	yes	horizontal	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-BL-PH-DC	295	25	backlight	12	red, 630 nm	yes	horizontal	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-BL-PV	295	25	backlight	12	red, 630 nm	yes	vertical	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-R-BL-PV-DC	295	25	backlight	12	red, 630 nm	yes	vertical	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-G-10	295	25	10	12	green, 530 nm	yes	no	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-G-10-DC	295	25	10	12	green, 530 nm	yes	no	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-G-10-PH	295	25	10	12	green, 530 nm	yes	horizontal	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-G-10-PH-DC	295	25	10	12	green, 530 nm	yes	horizontal	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-G-10-PV	295	25	10	12	green, 530 nm	yes	vertical	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-G-10-PV-DC	295	25	10	12	green, 530 nm	yes	vertical	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-G-20	295	25	20	12	green, 530 nm	yes	no	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-G-20-DC	295	25	20	12	green, 530 nm	yes	no	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-G-20-PH	295	25	20	12	green, 530 nm	yes	horizontal	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-G-20-PH-DC	295	25	20	12	green, 530 nm	yes	horizontal	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-G-20-PV	295	25	20	12	green, 530 nm	yes	vertical	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-G-20-PV-DC	295	25	20	12	green, 530 nm	yes	vertical	24	n.a.	Strobe	yes	n.a.	n.a.	307	66	33	购买
LTBRZ3-P-G-30	295	25	30	12	green, 530 nm	yes	no	24	n.a.	Strobe	no	n.a.	n.a.	307	66	33	购买

LTBRZ3 系列

带集成驱动电子元件的 LED 条形光源

核心优势

Learn

Online tools

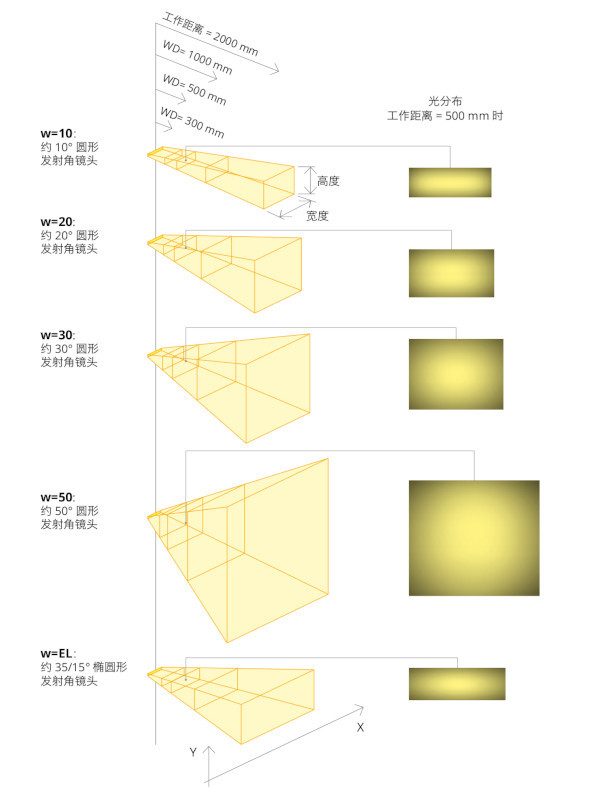

照明结构
